Transmission Control Device: Removal

1. Remove the transmission assembly from the vehicle. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690)>Automatic Transmission Assembly>  REMOVAL   .
2. Remove the oil pan and control valve body. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION (TR690)>Control Valve Body>  REMOVAL   .
3. Remove the inhibitor switch. Ref. to CONTINUOUSLY VARIABLE TRANSMISSION(TR690) >Inhibitor Switch>  REMOVAL   .
4. Remove the spring pin.
   NOTE: Prevent the spring pin from dropping in the transmission using paper towel etc.
   Fig 1: Locating Spring Pin

   Courtesy of SUBARU OF AMERICA, INC.
5. Remove the bolt and remove the range select lever, manual plate and parking rod.
   NOTE: Do not damage the lip of oil seal press-fitted in the case.

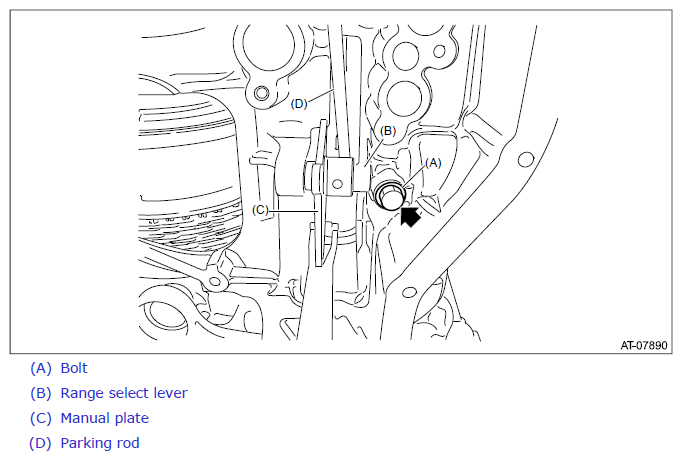

   Fig 2: Locating Bolt

   Courtesy of SUBARU OF AMERICA, INC.
6. Remove the detent spring.

Fig 3: Locating Detent Spring Bolt

Courtesy of SUBARU OF AMERICA, INC.
