Engine Wiring Harness: Installation

Route the engine wiring harness around the engine and connect connectors.
- Structural diagram 1

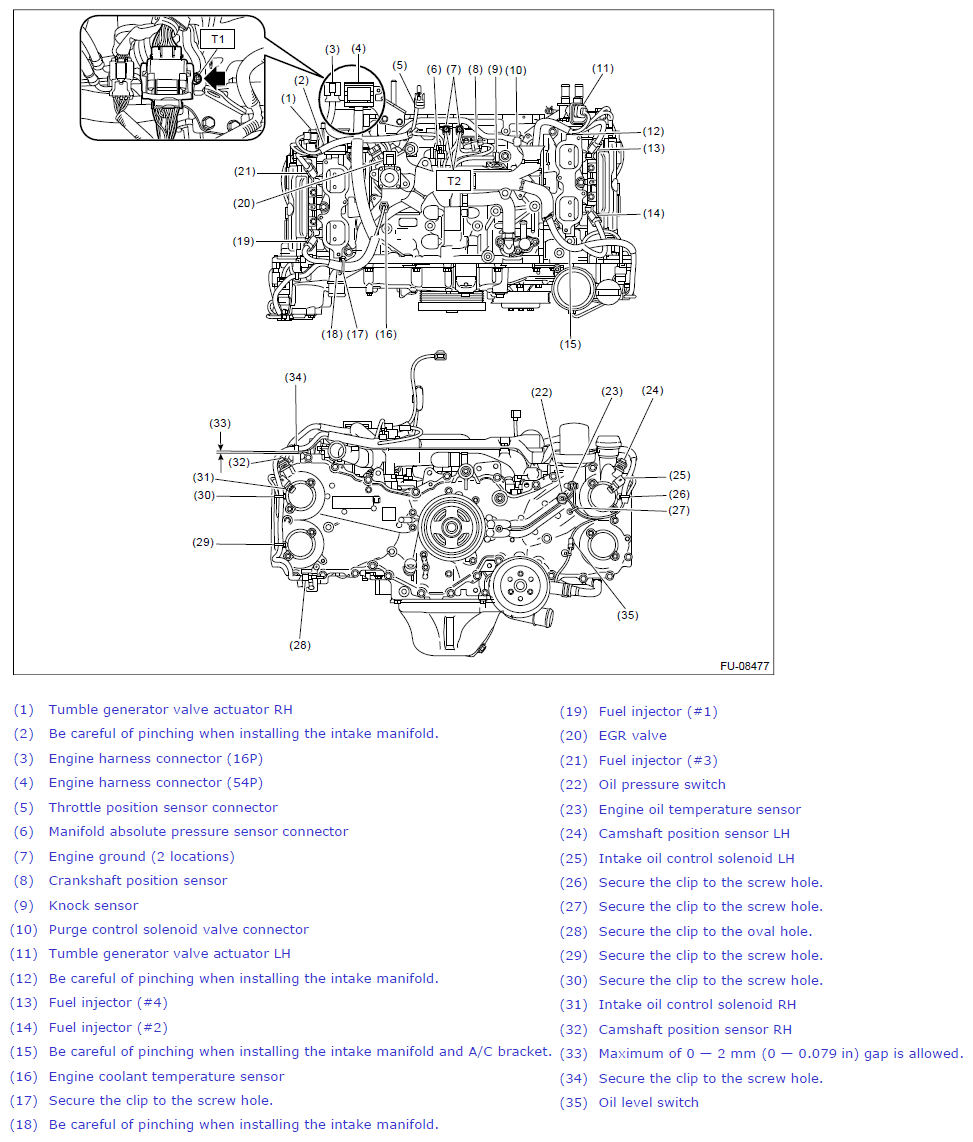

Fig 1: Fuel Injection (Fuel Systems) Structural Diagram 1
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 19 (1.9, 14.0)
- Structural diagram 2

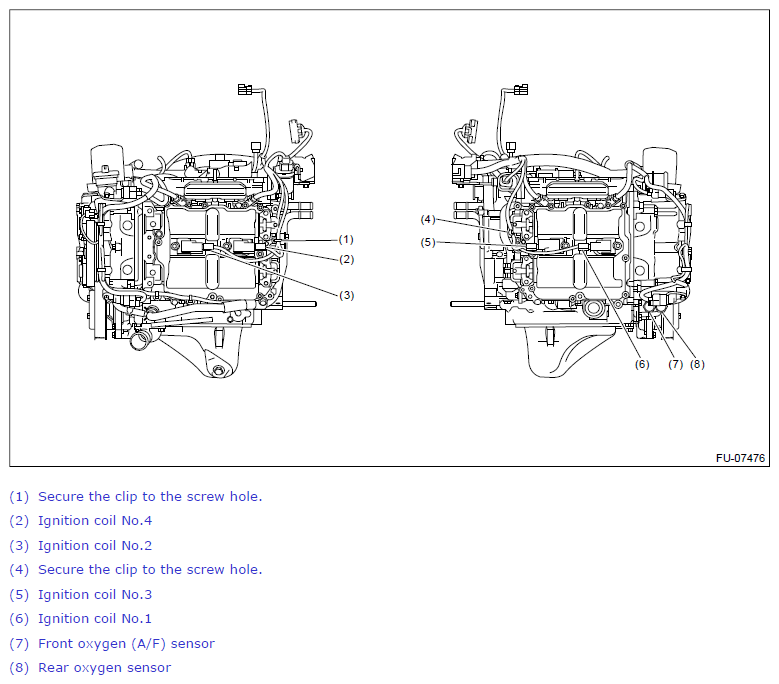

Fig 2: Fuel Injection (Fuel Systems) Structural Diagram 2
Courtesy of SUBARU OF AMERICA, INC.
Install the engine wiring harness.
Tightening torque:

6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

Fig 3: Locating Engine Wiring Harness Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the intake manifold. Ref. to FUEL INJECTION (FUEL SYSTEMS) (H4DO) > Intake Manifold > INSTALLATION .
Connect the battery ground terminal.
