Keyless Access Control Module: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the combination meter assembly. < Ref. to REMOVAL , Combination Meter. >
  3. Remove the keyless access control module.
    1. Remove the reinforcement - combination meter.
      NOTE: For model with navigation and model with telematics, remove the GPS antenna assembly. < Ref. to REMOVAL , GPS Antenna. >
    2. Disconnect the connector and remove the bolt.

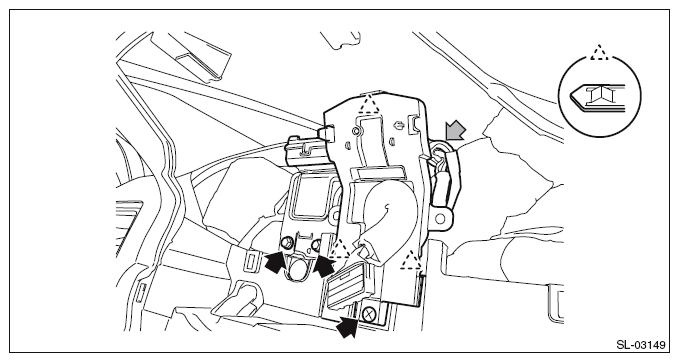

      Fig 1: Locating Keyless Access Control Module Bolts
      G10272999Courtesy of SUBARU OF AMERICA, INC.
