Telematics System (Diagnostics)
›
Control Module I/O Signal
›
System Block Diagram
System Block Diagram
Main signals used between DCM and relevant control module

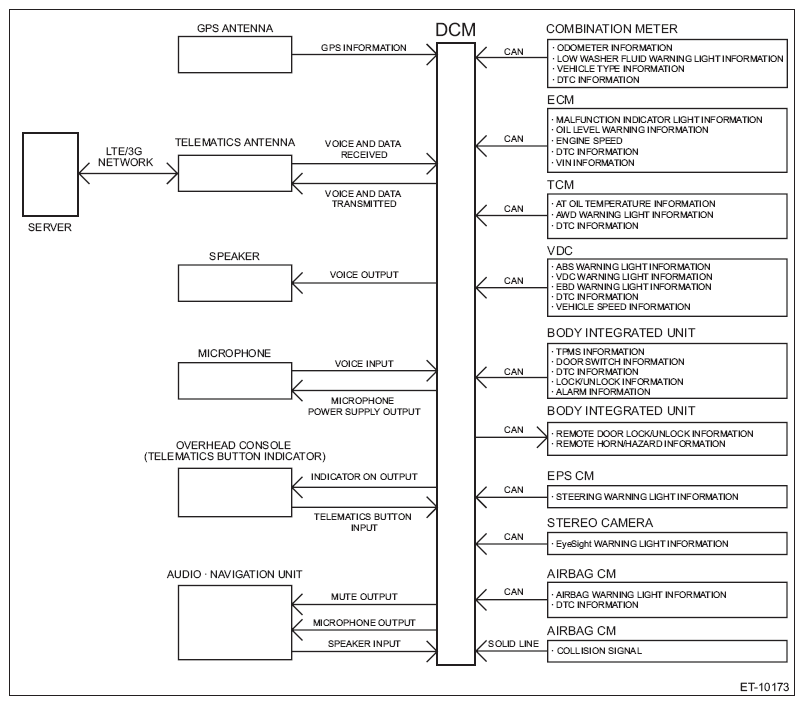

Fig 1: DCM And Relevant Control Module Block Diagram
Courtesy of SUBARU OF AMERICA, INC.
