Front Inner Remote: Removal

  1. Disconnect the ground terminal from the battery sensor, and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim. >
  3. Remove the screw, and remove the remote assembly - door.

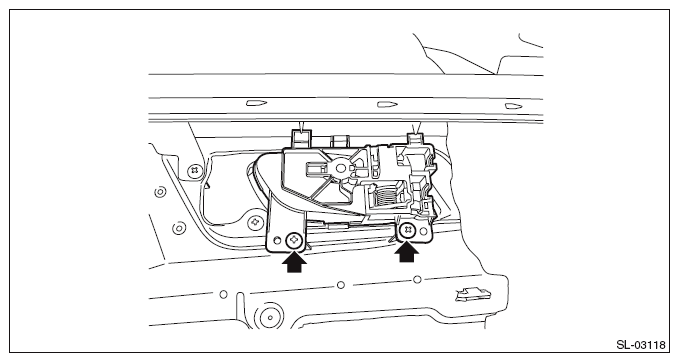

    Fig 1: Locating Door Remote Assembly Screws
    G10272906Courtesy of SUBARU OF AMERICA, INC.
