Main Relay: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
  2. Remove the main relay from main fuse box.

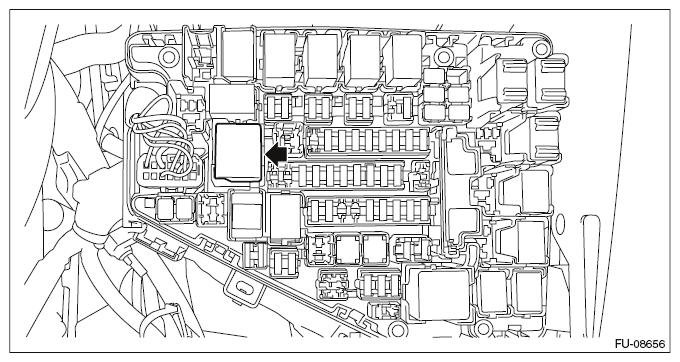

    Fig 1: Locating Main Relay And Main Fuse Box
    G10262210Courtesy of SUBARU OF AMERICA, INC.
