Rear Seat Belt (Sedan Model)

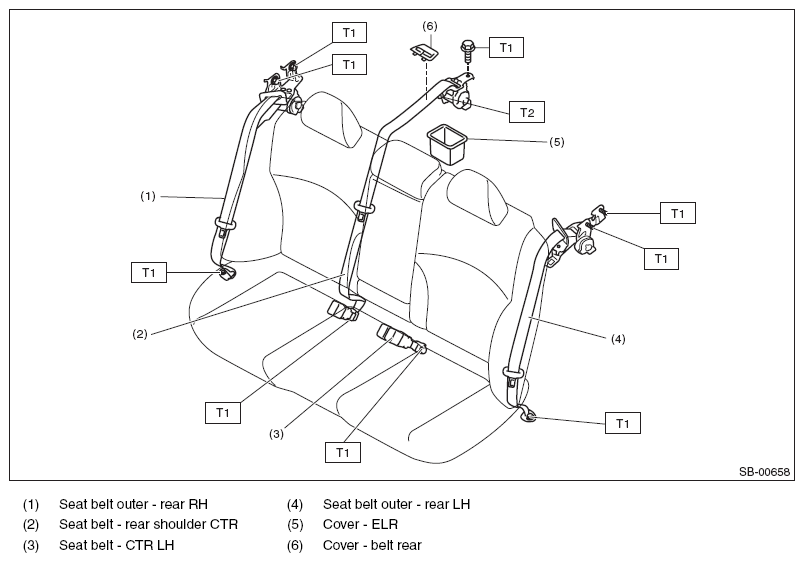

Fig 1: Identifying Rear Seat Belt Related Components With Torque Specification (Sedan Model)

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 30 (3.1, 22.1)

T2: 53 (5.4, 39.1)
