Steering Wheel And Column

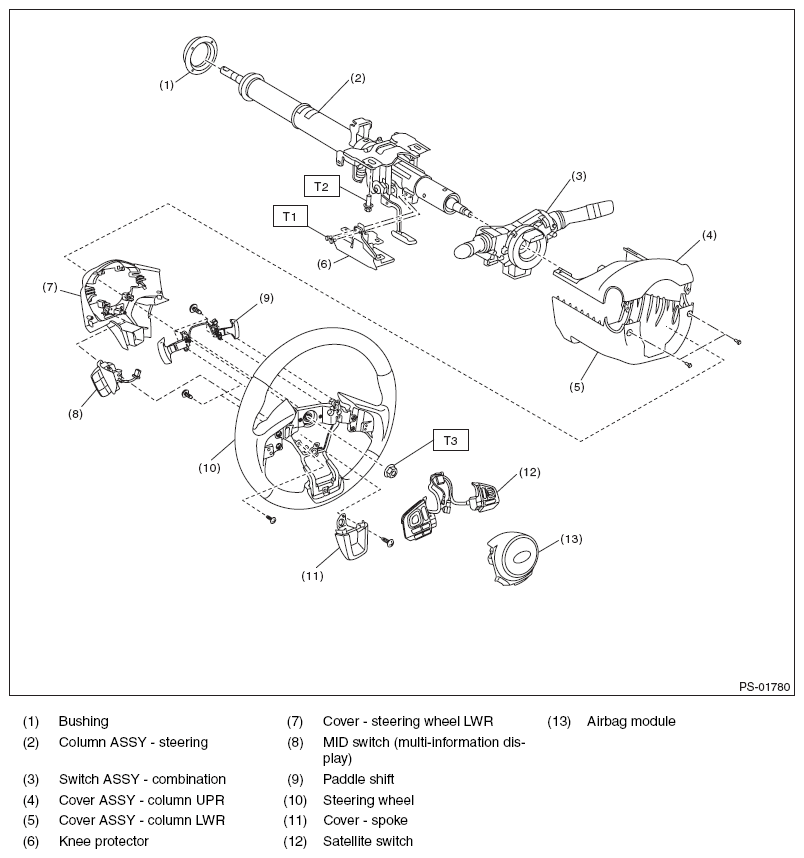

Fig 1: Identifying Steering Wheel And Column Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 4 (0.4, 3.0)

T2: 20 (2.0, 14.8)

T3: 39 (4.0, 28.8)
