Continuously Variable Transaxle (CVT) (Diagnostics)
›
Transmission Control Module (TCM) I/O Signal
›
Waveform
›
Solenoid
Transmission Control Module (TCM) I/O Signal: Waveform: Solenoid
ENGINE TYPE FB

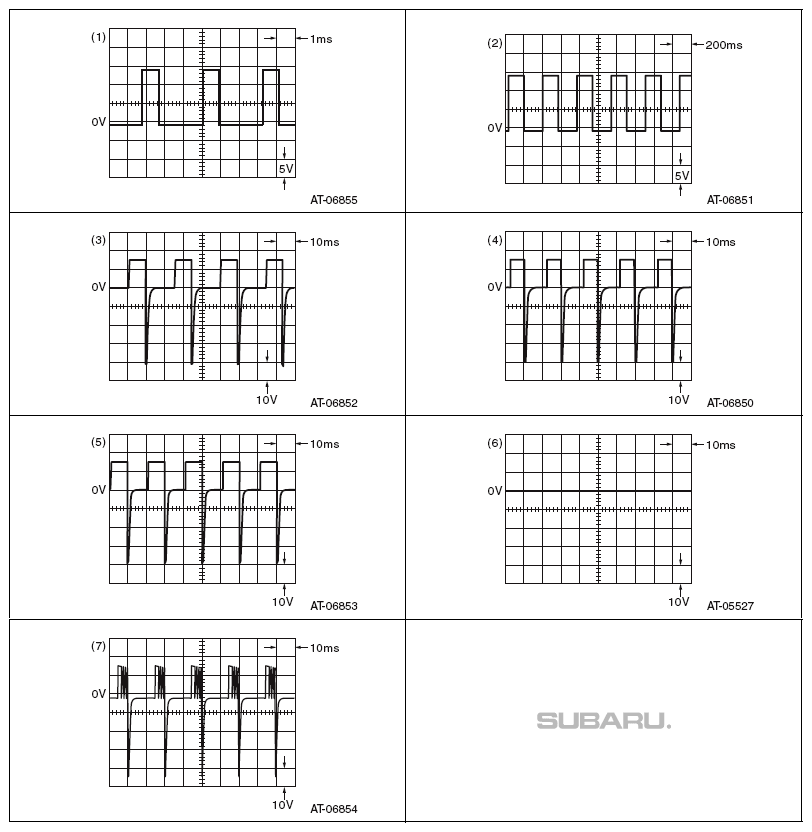

Fig 1: Solenoid Signal Waveform
Courtesy of SUBARU OF AMERICA, INC.
ENGINE TYPE EZ
Fig 2: Solenoid Signal Waveform
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
