Differential Case Assembly

Remove the taper roller bearing using the ST.
ST1 498077000 REMOVER

ST2 899864100 REMOVER

ST3 398497701 SEAT

Fig 1: Removing Taper Roller Bearing Using ST
Courtesy of SUBARU OF AMERICA, INC.
Remove the hypoid driven gear mounting bolt using the ST.
ST 18270KA020 SOCKET (E20)

Fig 2: Identifying Hypoid Driven Gear Mounting Bolts
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential case (LH).

Fig 3: Identifying Differential Case (LH)
Courtesy of SUBARU OF AMERICA, INC.
Remove the differential bevel gear and washer.

Fig 4: Identifying Differential Bevel Gear And Washer
Courtesy of SUBARU OF AMERICA, INC.
Remove the straight pin.

Fig 5: Locating Straight Pin
Courtesy of SUBARU OF AMERICA, INC.
Remove the pinion shaft, then remove the differential bevel gear, washer and differential bevel pinion.

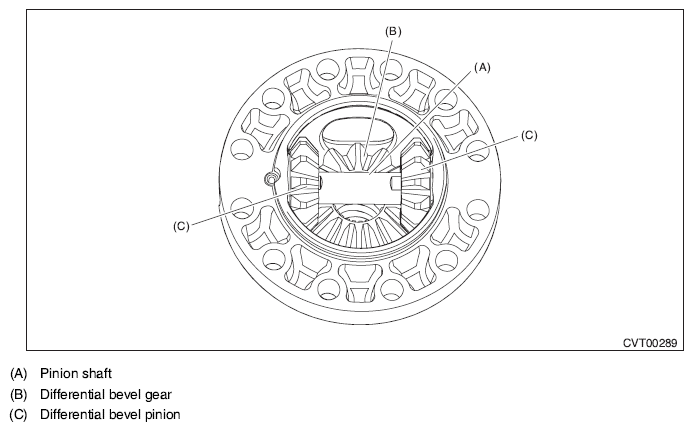

Fig 6: Identifying Pinion Shaft, Differential Bevel Gear, Washer And Differential Bevel Pinion
Courtesy of SUBARU OF AMERICA, INC.
