Starting System & Charging System (H6DO): Generator: Assembly

NOTE: After assembling, manually turn the pulley to check that the rotor rotates smoothly.

Use the following procedures to install the rectifier.
1. Remove old silicone grease on the mating surface of rear cover and rectifier and apply new silicone grease.
  CAUTION: Do not apply silicone grease to the attachment threads of rectifier.
2. Install the rectifier and secure it using bolts.
  Tightening torque:

  3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

  Fig 1: Locating Rectifier Bolts
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the nut on terminal B.
  Tightening torque:

  8.9 N.m (0.9 kgf-m, 6.6 ft-lb)

  Fig 2: Locating Nut On Terminal B
  Courtesy of SUBARU OF AMERICA, INC.
4. Install the cover on terminal B.

  Fig 3: Locating Cover On Terminal B
  Courtesy of SUBARU OF AMERICA, INC.
Use the following procedures to install the brush.
1. Install the brush and connect the connection.

  Fig 4: Installing Brush
  Courtesy of SUBARU OF AMERICA, INC.
2. Install the cover B.

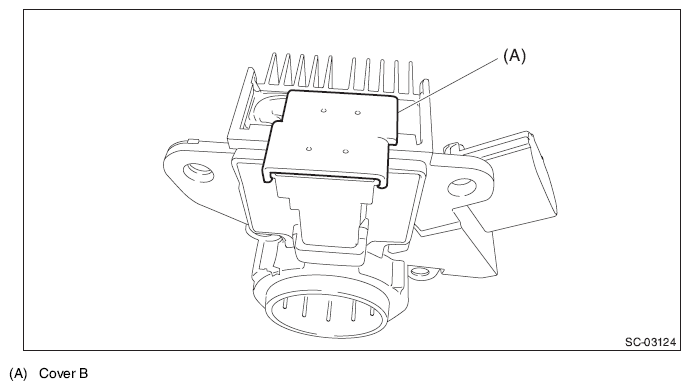

  Fig 5: Identifying Cover B
  Courtesy of SUBARU OF AMERICA, INC.
3. Install the cover A.

  Fig 6: Identifying Cover A
  Courtesy of SUBARU OF AMERICA, INC.
Install the IC regulator, and secure it to the rear cover using the four screws.
Tightening torque:

T1: 2 N.m (0.2 kgf-m, 1.5 ft-lb)

T2: 3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

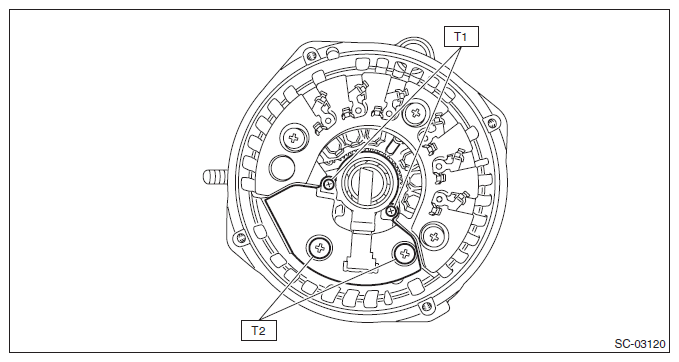

Fig 7: Identifying IC Regulator Screws With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the stator coil, and secure it together with the rectifier using six bolts.
Tightening torque:

2 N.m (0.2 kgf-m, 1.5 ft-lb)

Fig 8: Locating Rectifier And Stator Coil Bolts
Courtesy of SUBARU OF AMERICA, INC.
Install the ball bearings.
1. Set the ball bearings in the front cover, then securely install an appropriate tool (such as a socket wrench of proper size) to the bearing outer race.
2. Using a press to press the ball bearings into the specified location.
3. Install the bearing retainer.
Tightening torque:

3.9 N.m (0.4 kgf-m, 2.9 ft-lb)

Fig 9: Locating Bearing Retainer Bolts
Courtesy of SUBARU OF AMERICA, INC.
Use a press to install the bearings (rear side) to the rotor shaft.
Install the rotor to the front cover, and install the pulley holding the rotor using a vise.
CAUTION: When holding the rotor with a vise, place aluminum plates or wooden pieces on the vise jaws to prevent rotor from damage.

Tightening torque:

117.5 N.m (12.0 kgf-m, 86.7 ft-lb)

Fig 10: Installing Pulley Nut Using Vise
Courtesy of SUBARU OF AMERICA, INC.

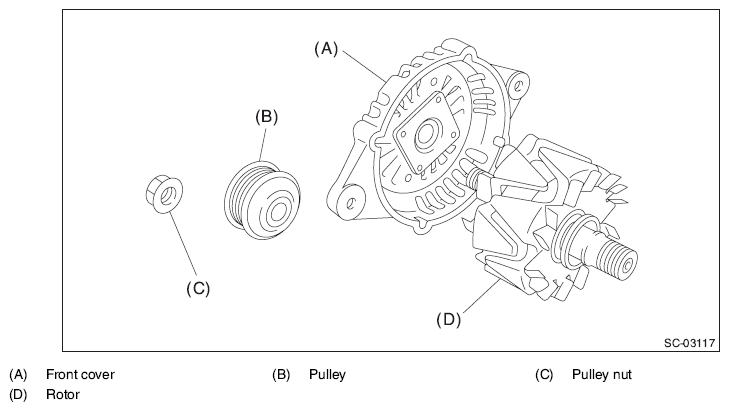

Fig 11: Identifying Front Cover, Pulley, Pulley Nut And Rotor
Courtesy of SUBARU OF AMERICA, INC.
Press the brush into the brush holder, then fix the brush in that position by inserting a [1 mm (0.08 in) dia., 40 - 50 mm (1.6 - 2.0 in) long] wire through the hole as shown in the figure.

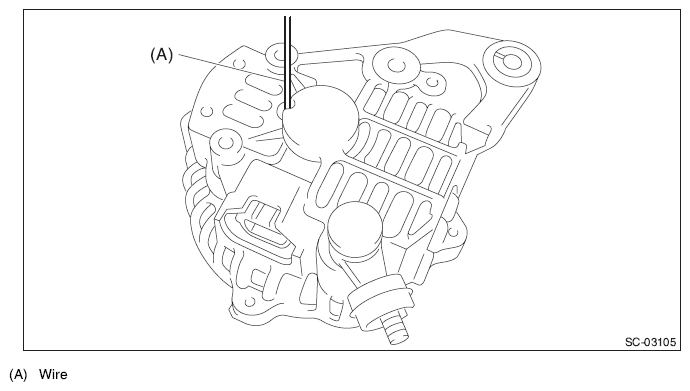

Fig 12: Installing Wire Into Hole
Courtesy of SUBARU OF AMERICA, INC.
Heat the bearing box in rear cover to 50 - 60°C (122 - 140°F), and then press the rear bearing into rear cover.
CAUTION: Do not apply grease to the bearings. If there is any oil on the bearing box, remove it completely.
Remove the wire.

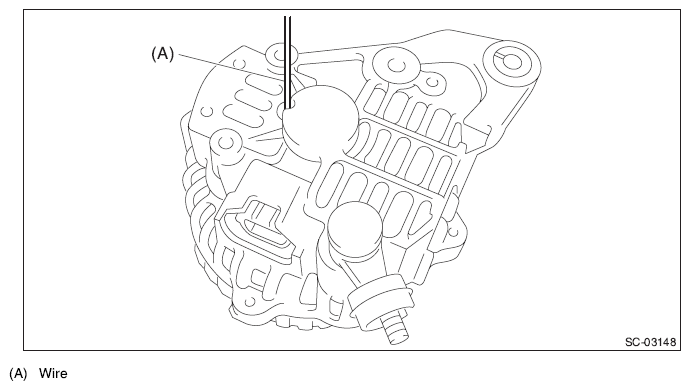

Fig 13: Removing Wire
Courtesy of SUBARU OF AMERICA, INC.
Install the four bolts.
Tightening torque:

4.4 N.m (0.4 kgf-m, 3.2 ft-lb)

Fig 14: Locating Generator Bolts
Courtesy of SUBARU OF AMERICA, INC.
