Starting System & Charging System (H6DO): Generator: Installation

Install the generator bracket to the engine.
Tightening torque:

36 N.m (3.7 kgf-m, 26.6 ft-lb)
Temporarily attach the bolts (A) and generator plate (B) to the generator.
Temporarily fit the generator in the groove (C) of the A/C compressor bracket.

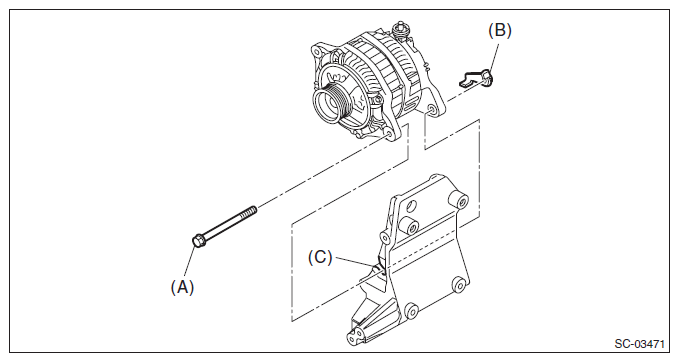

Fig 1: Identifying A/C Compressor Bracket Groove, Generator Plate And Bolts
Courtesy of SUBARU OF AMERICA, INC.
Temporarily fit the collector cover bracket.
Tighten the generator and collector cover bracket in the numerical order.
Tightening torque:

T1: 6.4 N.m (0.7 kgf-m, 4.7 ft-lb)

T3: 25 N.m (2.5 kgf-m, 18.4 ft-lb)
Install the harness cover (C) to the collector cover bracket.
Connect the connector (A) to the generator, and install the terminal (B).
Tightening torque:

T2: 15 N.m (1.5 kgf-m, 11.1 ft-lb)

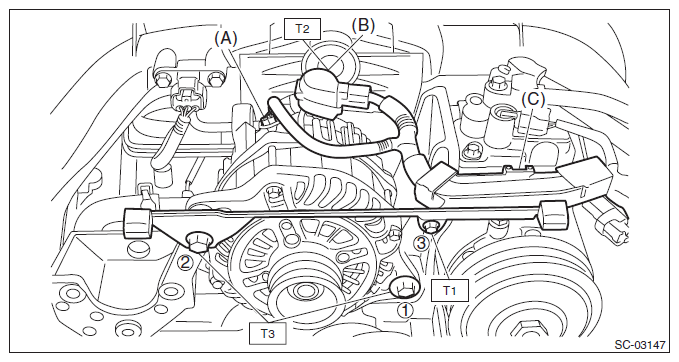

Fig 2: Identifying Generator Connector, Harness Cover, Terminal And Bolts With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Install the tensioner assembly.
Tightening torque:

20 N.m (2.0 kgf-m, 14.8 ft-lb)
Install the V-belts. < Ref. to INSTALLATION , V-belt. >
Connect the ground terminal to battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Install the collector cover.
