Transmission Control Module (TCM): Removal

Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Repair Contents. >
Remove the air cleaner case. < Ref. to REMOVAL , Air Cleaner Case. >
Move the lock lever in the arrow direction while pressing the lock button, and disconnect the connector.

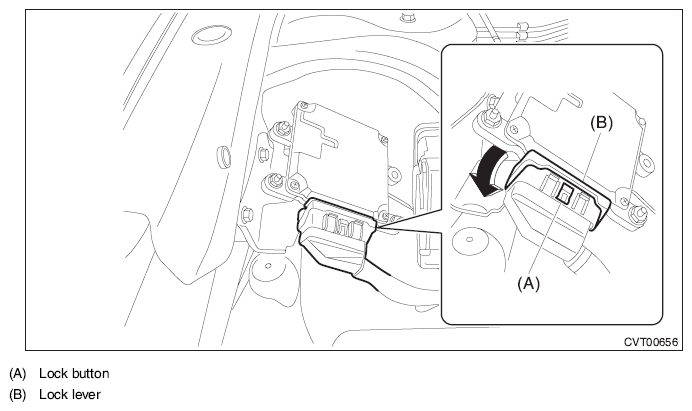

Fig 1: Moving Lock Lever
Courtesy of SUBARU OF AMERICA, INC.
Remove the TCM.

Fig 2: Identifying Transmission Control Module
Courtesy of SUBARU OF AMERICA, INC.
