Airbag Control Module

CAUTION: Do not reuse mounting bolts and nuts.

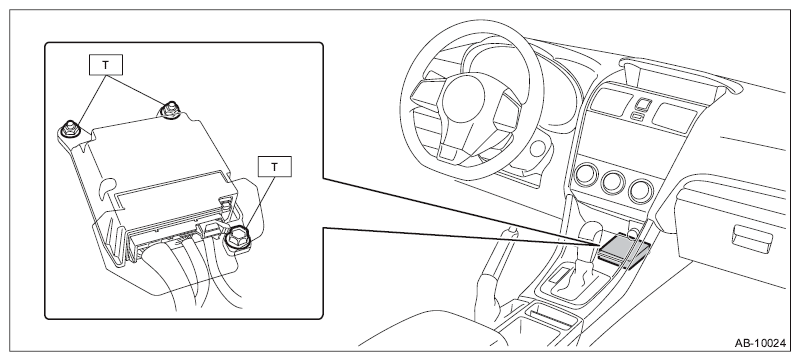

Fig 1: Identifying Airbag Control Module With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T: 25 (2.5, 18.4)
