Rearview Camera System: Inspection

Park the vehicle at the level place where there are enough area at the rear of the vehicle.

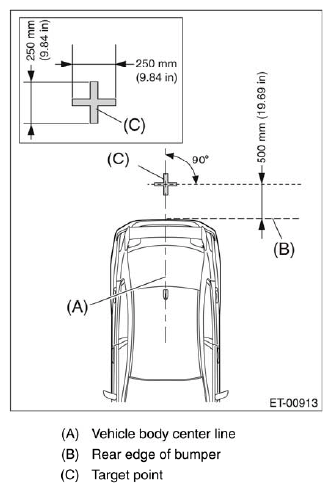

Attach the tape as the target point for standard at the floor rearward of the vehicle as shown in the Fig 1 below.
NOTE: Standard tape width is about 30 - 50 mm (1.18 - 1.97 in) and brilliant color shall be used.

Fig 1: Identifying Standard Tape Width
Courtesy of SUBARU OF AMERICA, INC.
Confirm the following before checking the corresponding items.
- When the display is blank:
  Rearview camera image is not displayed. (Audio and navigation screens are displayed normally.)
  1. Check the condition of back sensor connection.
    - Audio system: < Ref. to CHECK EACH VEHICLE SIGNAL , INSPECTION, Audio System. >
    - Navigation system: < Ref. to CHECK EACH VEHICLE SIGNAL , INSPECTION, Navigation System. >
  2. Check the condition of rearview camera connection.
    - Audio system: < Ref. to CHECK EACH CONNECTION , INSPECTION, Audio System. >
    - Navigation system: < Ref. to CHECK EACH CONNECTION , INSPECTION, Navigation System. >
- When the marker position is not aligned:
  - Adjust the marker position according to the MARKER ADJUSTMENT MODE. < Ref. to MARKER ADJUSTMENT MODE , ADJUSTMENT, Rearview Camera System. >
