Body Integrated Unit: Removal

CAUTION: Before handling the airbag system components, refer to "CAUTION" of "General Description" in "AIRBAG SYSTEM". < Ref. to CAUTION , General Description. >
  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the cover assembly - instrument panel LWR driver. < Ref. to REMOVAL , Instrument Panel Lower Cover. >
  3. Remove the knee airbag module. < Ref. to REMOVAL , Knee Airbag Module. >
  4. Release the lock and remove the fuse holder.
    Fig 1: Locating Fuse Holder
    G08315475Courtesy of SUBARU OF AMERICA, INC.
  5. Remove the relay & fuse box.
    1. Disconnect the connector.
    2. Remove the bolts and nuts, and remove the relay & fuse box.
      Fig 2: Locating Relay And Fuse Box Bolt/Nuts
      G08315115Courtesy of SUBARU OF AMERICA, INC.
  6. Remove the body integrated unit.
    CAUTION: Be careful to keep water and other foreign materials away from body integrated unit.
    1. Disconnect the connector.
      Fig 3: Locating Body Integrated Unit Connectors
      G08315116Courtesy of SUBARU OF AMERICA, INC.
    2. Release the lock and remove the data link connector bracket.

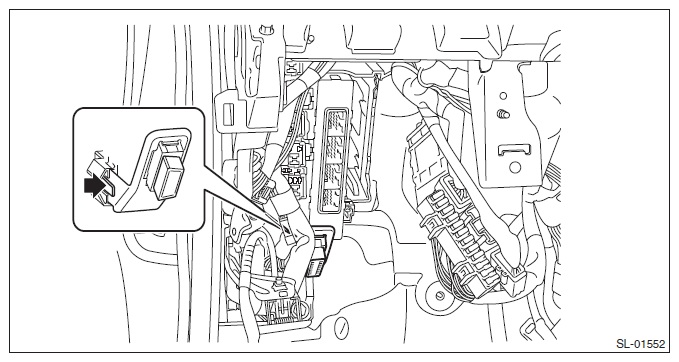

      Fig 4: Locating Data Link Connector Bracket Lock
      G08319284Courtesy of SUBARU OF AMERICA, INC.
    3. Release the claws, and pull out the body integrated unit.

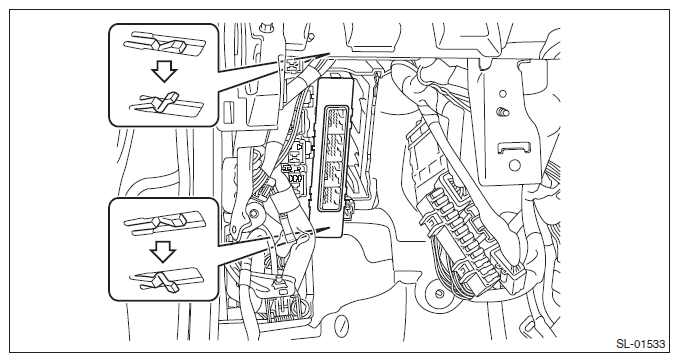

      Fig 5: Pulling Out Body Integrated Unit
      G08319285Courtesy of SUBARU OF AMERICA, INC.
