Front Inner Remote: Removal

  1. Disconnect the ground cable from battery and wait for at least 60 seconds before starting work. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - front door. < Ref. to FRONT DOOR , REMOVAL, Door Trim. >
  3. Remove the screw, and remove the remote assembly - door.
    CAUTION: The remote assembly - door is tightened with the plate. Be careful not to drop or damage the part.

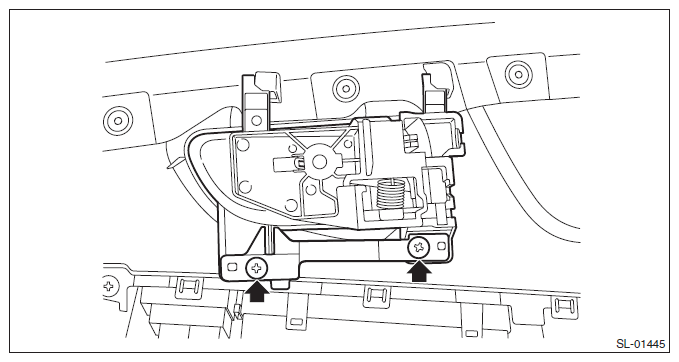

    Fig 1: Locating Remote Assembly Door Bolts
    G08319207Courtesy of SUBARU OF AMERICA, INC.
