Rear Inner Remote: Removal

  1. Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
    NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
  2. Remove the trim panel - rear door. < Ref. to REAR DOOR , REMOVAL, Door Trim. >
  3. Remove the screw, and remove the remote assembly - door.

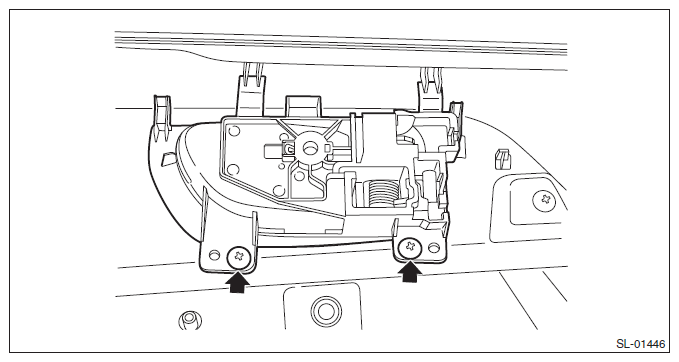

    Fig 1: Locating Remote Assembly Door Screws
    G08319220Courtesy of SUBARU OF AMERICA, INC.
