Rear Door

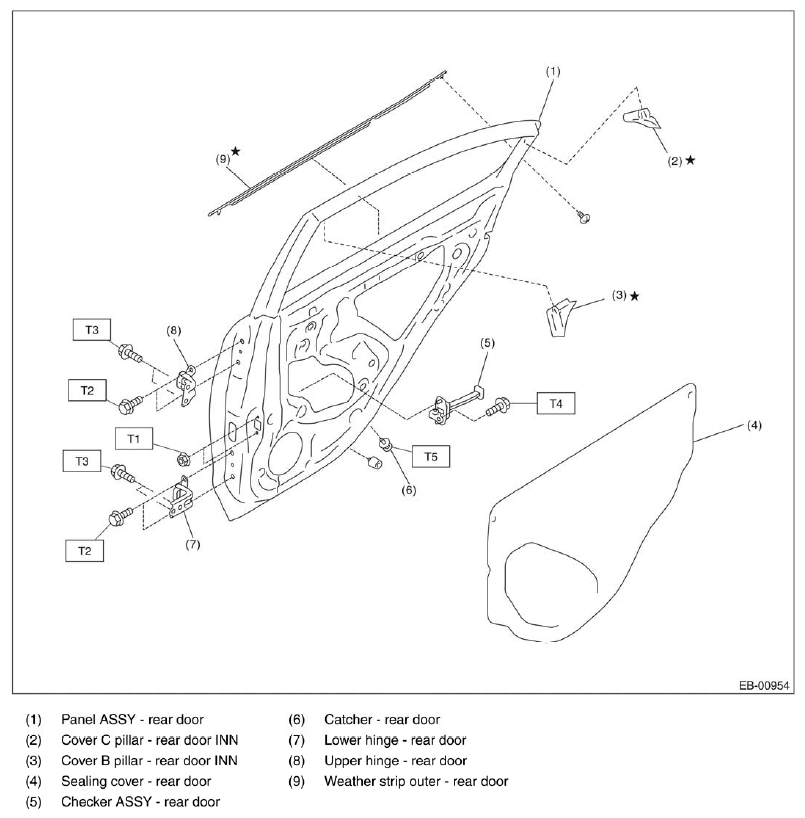

Fig 1: Exploded View Of Rear Door With Torque Specifications

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 7.5 (0.8, 5.5)

T2: 25(2.5, 18.4)

T3: 30(3.1, 22.1)

T4: 33(3.4, 24.3)

T5: 38(3.9, 28.0)
