General Description
›
Components With Torque Specifications
›
Weather Strip
Weather Strip

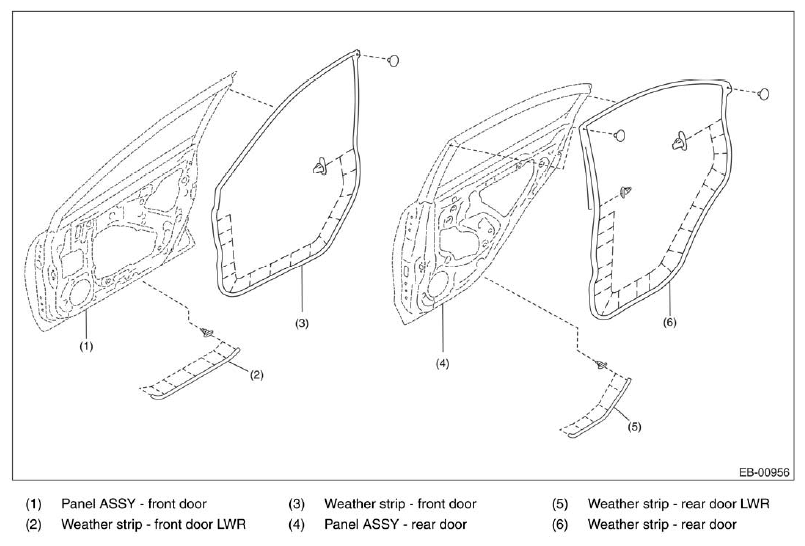

Fig 1: Exploded View Of Weather Strip
Courtesy of SUBARU OF AMERICA, INC.

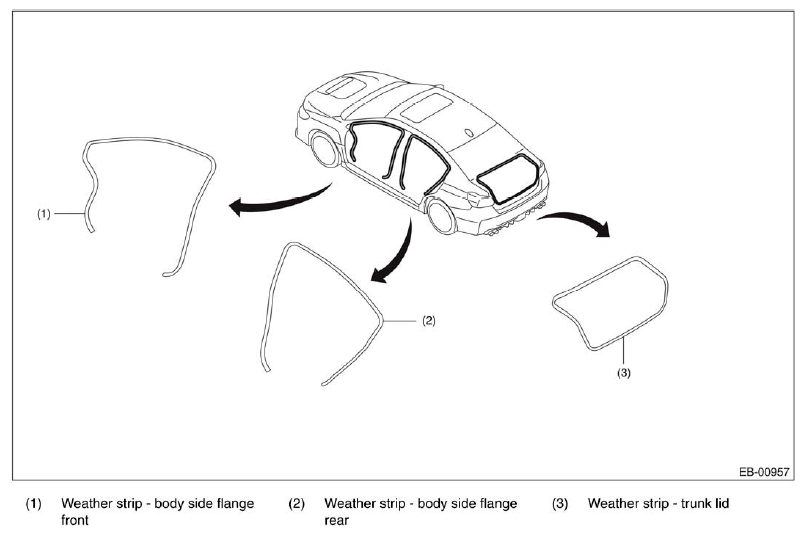

Fig 2: Exploded View Of Weather Strip
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
