Combination Meter: Removal

Disconnect the ground cable from battery. < Ref. to BATTERY , NOTE, Note. >
NOTE: For models other than STI model, disconnect the ground terminal from battery sensor.
Release the lock, tilt the steering column to the lowest end and fully extend the column by the telescopic system.
Release the screws, clips and claws, and remove the visor - combination meter.

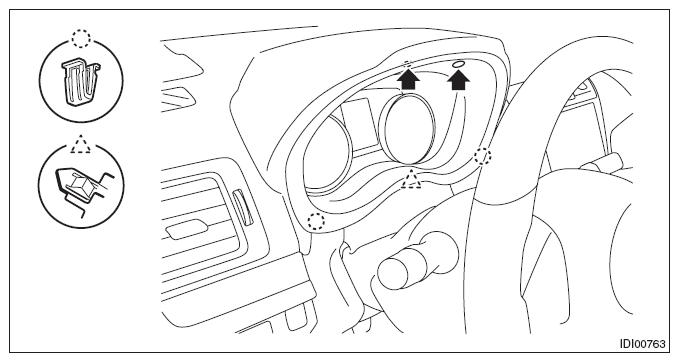

Fig 1: Locating Combination Meter Screws And Clips
Courtesy of SUBARU OF AMERICA, INC.
Remove the combination meter assembly.
CAUTION:
- Be careful not to damage the meter or instrument panel.
- Pay particular attention to avoid damaging the meter glass.
1. Remove the screws.

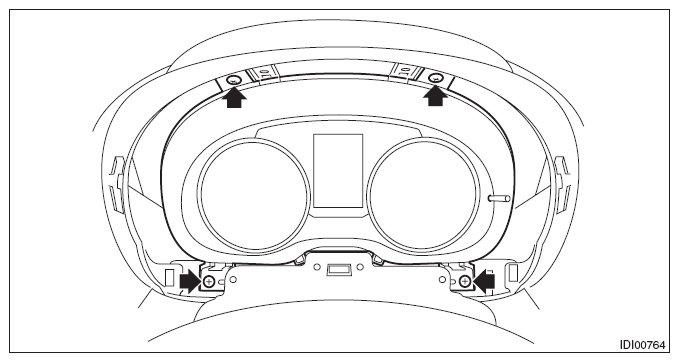

  Fig 2: Locating Combination Meter Assembly Screws
  Courtesy of SUBARU OF AMERICA, INC.
2. Pull the combination meter assembly toward you and disconnect the connector.

  Fig 3: Pulling Combination Meter Assembly
  Courtesy of SUBARU OF AMERICA, INC.
