Valve Assembly

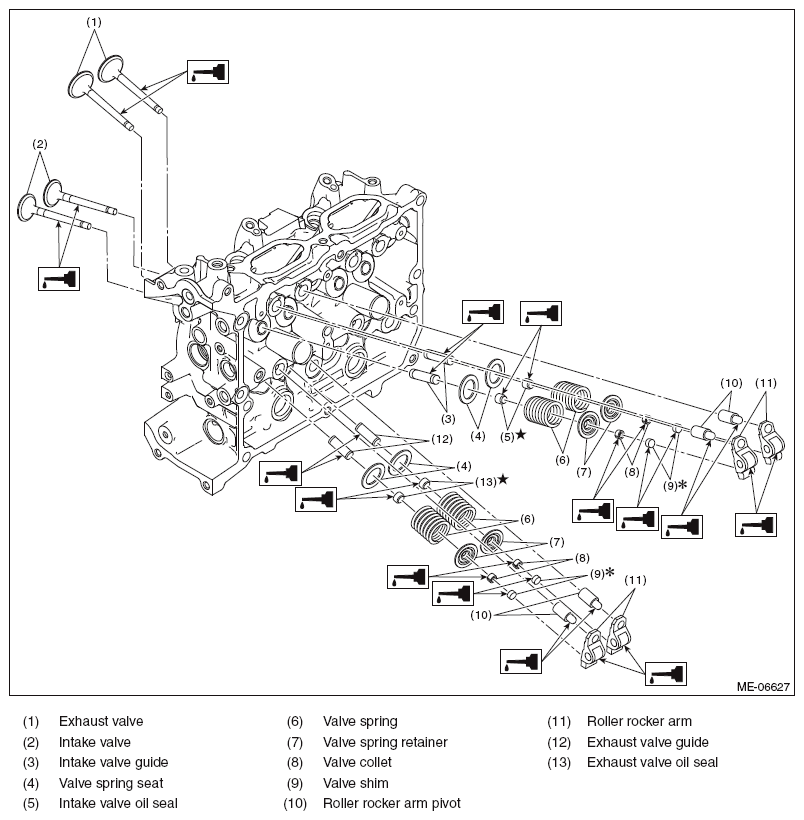

Fig 1: Exploded View Of Valve Assembly With Torque Specification
G10291651Courtesy of SUBARU OF AMERICA, INC.
