Fuel Injector Relay: Removal

  1. Disconnect the ground terminal from battery sensor. < Ref. to BATTERY , NOTE, Note. >
  2. Remove the fuel injector relay from main fuse box.

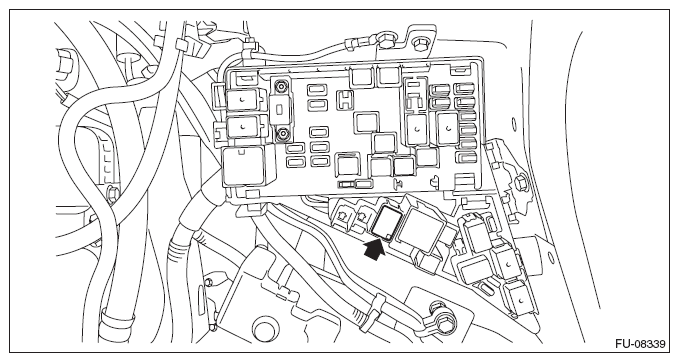

    Fig 1: Locating Fuel Injector Relay Of Main Fuse Box
    G10266272Courtesy of SUBARU OF AMERICA, INC.
