Fuel Pipe Insulator No. 2

  1. Remove the fuel pipe insulator No. 1. < Ref. to FUEL PIPE INSULATOR NO. 1 , REMOVAL, Fuel Insulator. >
  2. Remove the fuel pipe insulator No. 2.

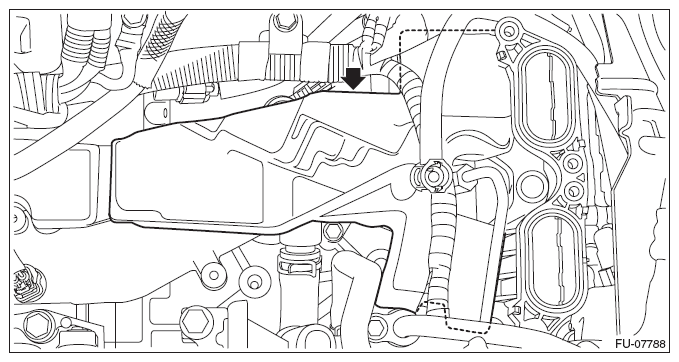

    Fig 1: Locating Fuel Pipe Insulator No. 2
    G09479650Courtesy of SUBARU OF AMERICA, INC.
