Transmission Harness And Sensor

WARNING: This page is about a different variant/trim than selected.

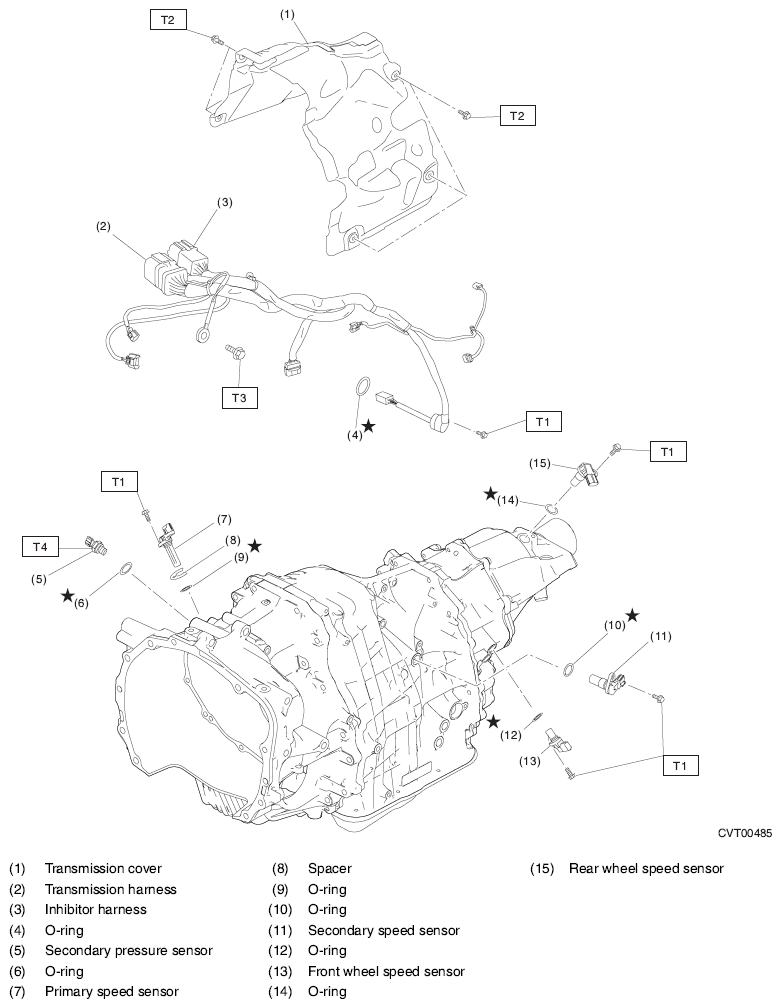

Fig 1: Identifying Transmission Harness And Sensor Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 5 (0.5, 3.7)

T2: 8 (0.8, 5.9)

T3: 16(1.6, 11.8)

T4: 39(4.0, 28.8)
