Blower Motor-Design Change To Address Operating Sound And Fan Speed Control Concerns (10-86-17R)
Publication date: 2018-09-27Reference number: 10-86-17R
Supersedes refnos: 10-86-17
BLOWER MOTOR-DESIGN CHANGE TO ADDRESS OPERATING SOUND AND FAN SPEED CONTROL CONCERNS
TECHNICAL SERVICE BULLETIN
| SUBARU: | 2014-2016 Forester; 2012-2016 Impreza; 2013-2016 Crosstrek; 2015-2016 WRX and WRX STI |
APPLICABILITY
2014-2016MY Forester Models
2012-2016 Impreza Models
2013-2016 Crosstrek Models
2015-2016MY WRX and WRX STI Models
INTRODUCTION
A design change was made to the blower motor assembly to address the following customer concerns:
- Blower fan is either inoperative or only operates on high speed.
- Excessive rotational-type sound heard when the fan is operating.

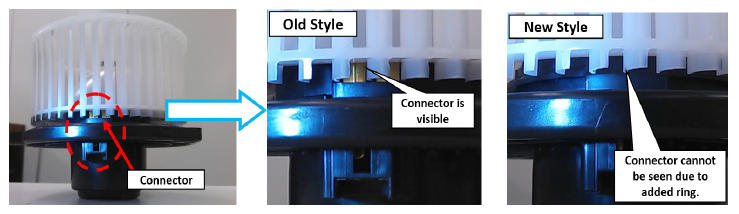

An additional ring of material has been added to the housing to protect the connector portion of the assembly from water intrusion and optimize durability.
PRODUCTION CHANGE INFORMATION
The new blower motor assemblies have been incorporated into production as per the table below:
| Vehicle/Model | Starting VIN |
|---|---|
| WRX/WRX STI | G*822576 |
| Forester | G*488051 |
| Impreza | G*006166 |
| Crosstrek | G*224407 |
PART INFORMATION
| Description | Part Number | Applicability |
|---|---|---|
| MOTOR-BLOWER | 72223FJ001 | Manual A/C Models Only |
| RESISTANCE | 72226FG001 | |
| BLOWER & COOLING UNIT | 72210FJ032 | Models w/Auto A/C |
SERVICE PROCEDURE/INFORMATION
- On models equipped with MANUAL A/C:
If the blower fan only operates on high speed, it may be due to an open circuit blower resistor.
Follow the troubleshooting chart located in the "Diagnostics with Phenomenon" section of the applicable Service Manual before replacing any parts. If the resistor is faulty, the damage was most likely a result of increased current draw caused by a seized (binding or loud) blower motor assembly.
Replace the blower motor assembly and resistor as a set following the service procedure in the applicable Service Manual.
- On models equipped with AUTO A/C:
Follow the troubleshooting chart located in the "Diagnostics with Phenomenon" section of the applicable Service Manual before replacing any parts. If the blower motor assembly requires replacement (seized, binding or loud), replace the blower and cooling unit assembly following the service procedure in the applicable Service Manual. If the blower speed cannot be changed normally after replacement, revisit the troubleshooting chart located in the "Diagnostics with Phenomenon" section of the applicable Service Manual.
WARRANTY/CLAIM INFORMATION
For vehicles within the Basic New Car Limited Warranty period or covered by an active Subaru Added Security Classic or Gold plan, this repair may be submitted using the following claim information:
| Labor Description | Labor Operation # | Labor Time | Fail Code |
|---|---|---|---|
| MANUAL A/C BLOWER MOTOR AND RESISTOR-REPLACE | A870-243 | 0.6 | UAM-25 |
| AUTO A/C BLOWER & COOLING UNIT-REPLACE | A870-341 | 0.7 |
IMPORTANT REMINDERS:
- SOA strongly discourages the printing and/or local storage of service information as previously released information and electronic publications may be updated at any time.
- Always check for any open recalls or campaigns anytime a vehicle is in for servicing.
- Always refer to STIS for the latest service information before performing any repairs.
