Clutch Assembly

STI model

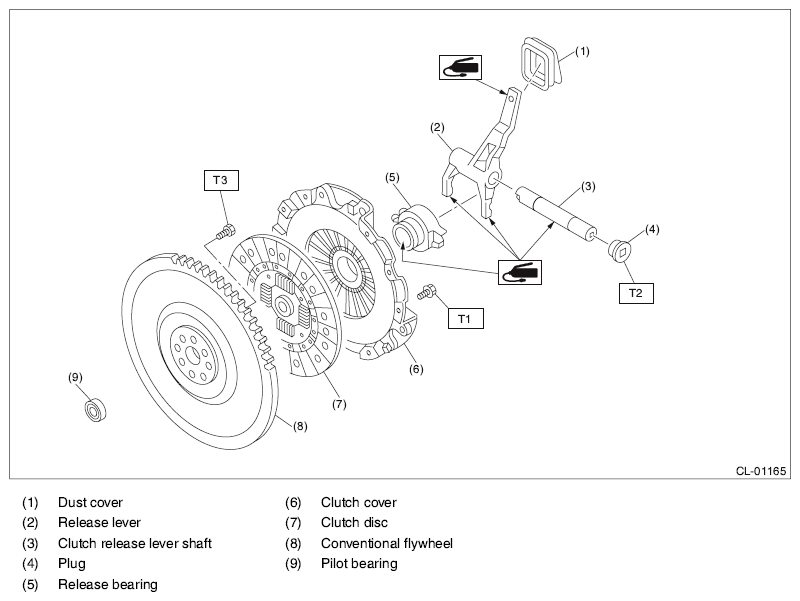

Fig 1: Exploded View Of Clutch Assembly With Torque Specification - STI Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: 48(4.9, 35.4)

T3: 75(7.6, 55.3)
Except for STI model

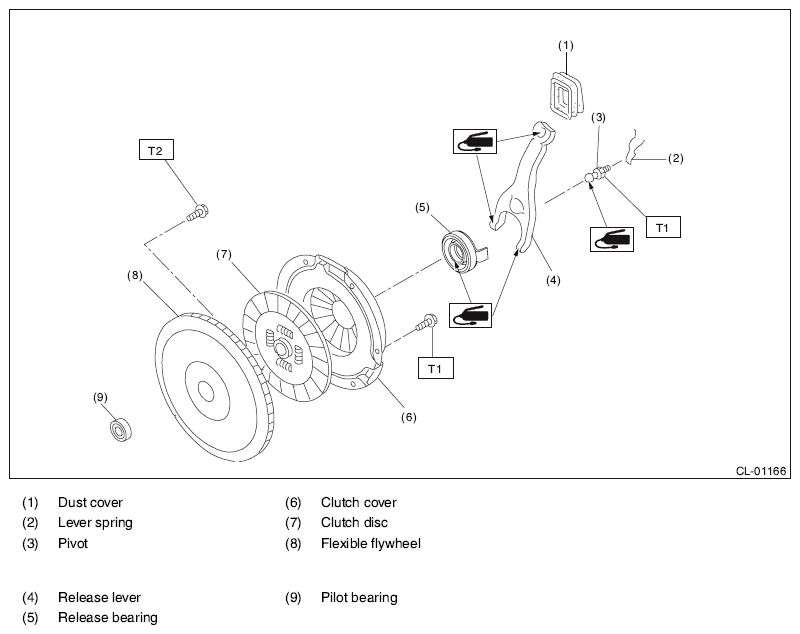

Fig 2: Exploded View Of Clutch Assembly With Torque Specification - Except For STI Model
Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: < Ref. to EXCEPT FOR STI MODEL , INSTALLATION, Flywheel. >
