Clutch Pipe And Hose

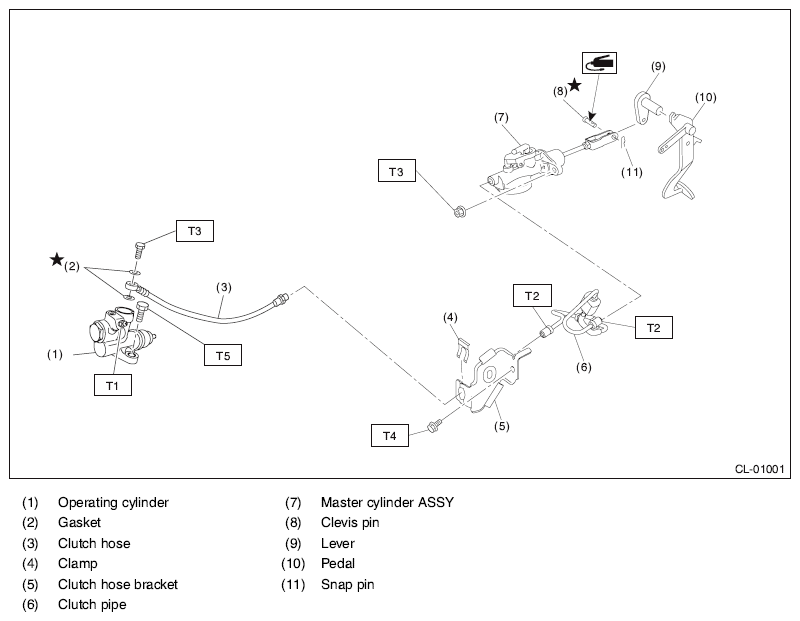

Fig 1: Exploded View Of Clutch Pipe And Hose With Torque Specification - STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 7.8 (0.8, 5.8)

T2: 15 (1.5, 11.1)

73: 18 (1.8, 13.3)

T4: 25 (2.5, 18.4)

T5: 41 (4.2, 30.2)

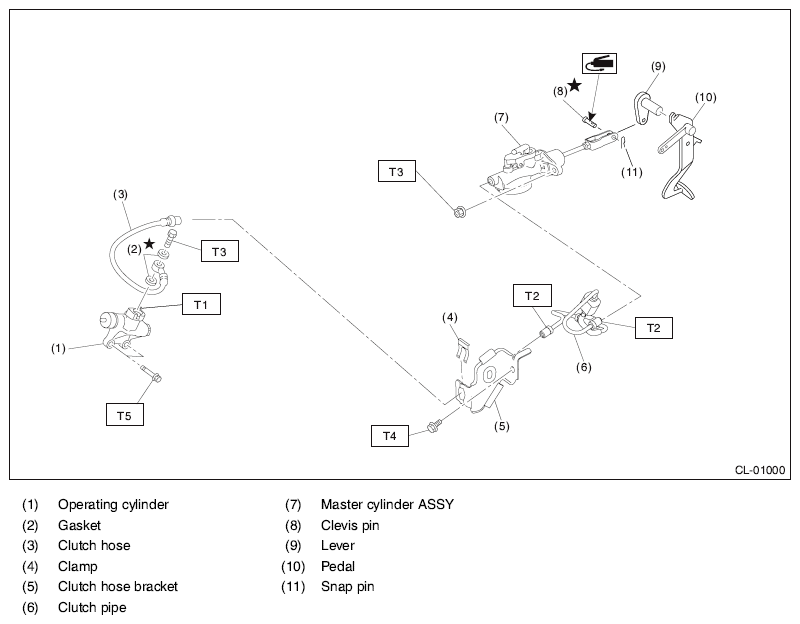

Fig 2: Exploded View Of Clutch Pipe And Hose With Torque Specification - Except For STI Model

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N. (kgf-m, ft-lb)

T1: 7.8 (0.8, 5.8)

T2: 15 (1.5, 11.1)

T3: 18 (1.8, 13.3)

T4: 25 (2.5, 18.4)

T5: 37 (3.8, 27.3)
