Center Differential Carrier: Disassembly

Remove the snap ring, and pull out the pinion shaft from center differential assembly.

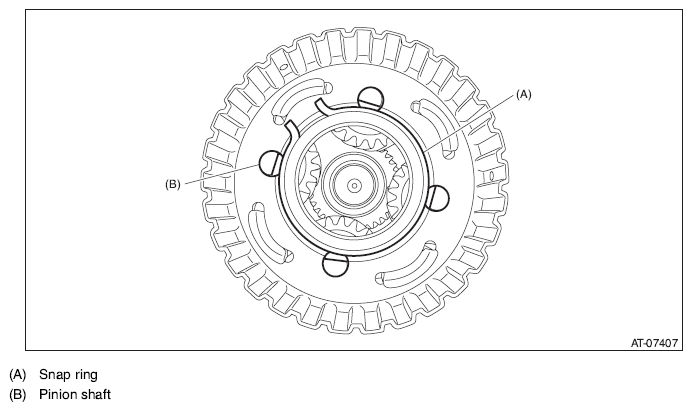

Fig 1: Identifying Snap Ring And Pinion Shaft
Courtesy of SUBARU OF AMERICA, INC.
Remove the pinion gear and washers from center differential assembly.

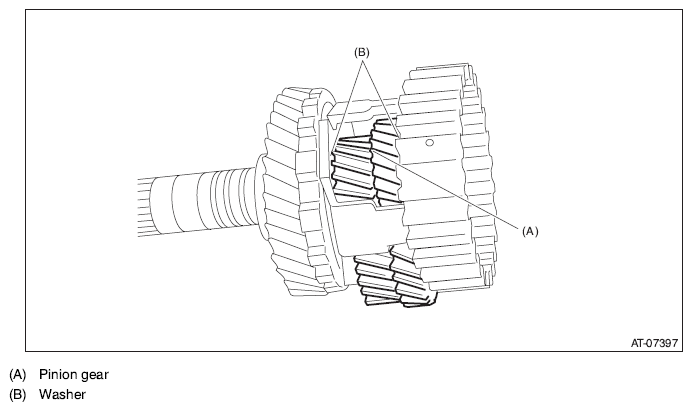

Fig 2: Identifying Pinion Gear And Washers
Courtesy of SUBARU OF AMERICA, INC.
Remove the intermediate shaft and thrust bearing.
