General Description
›
Components With Torque Specifications
›
Forward Clutch Assembly And Reduction Driven Gear
Forward Clutch Assembly And Reduction Driven Gear

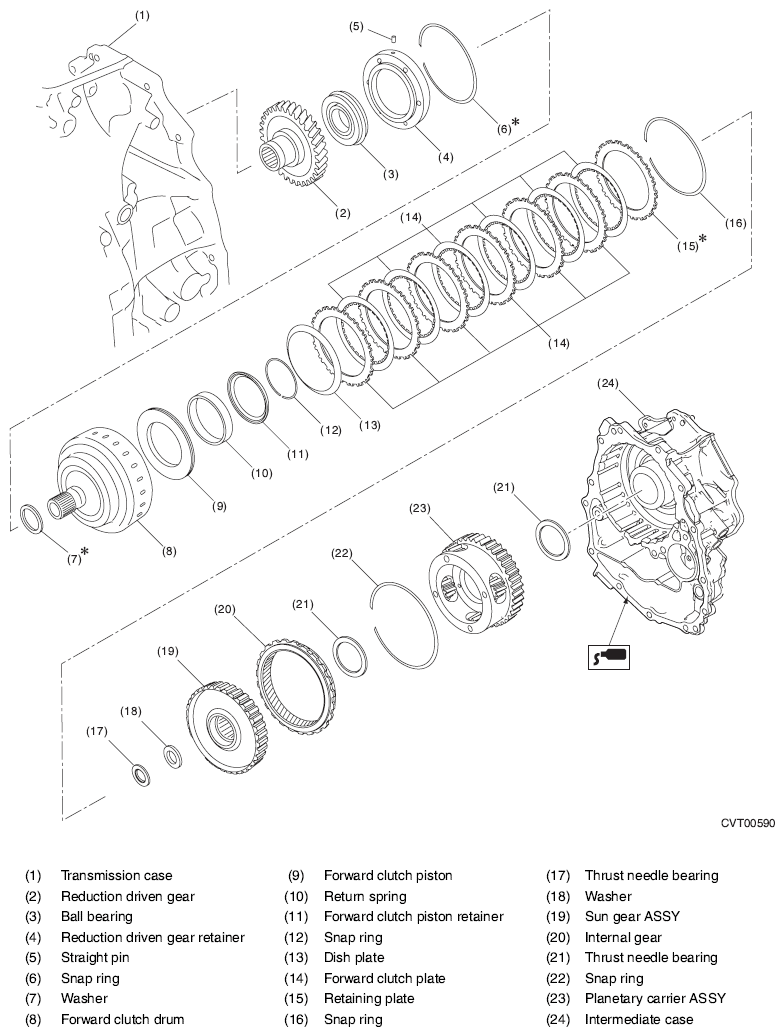

Fig 1: Exploded View Of Forward Clutch Assembly And Reduction Driven Gear
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
