Components With Torque Specifications

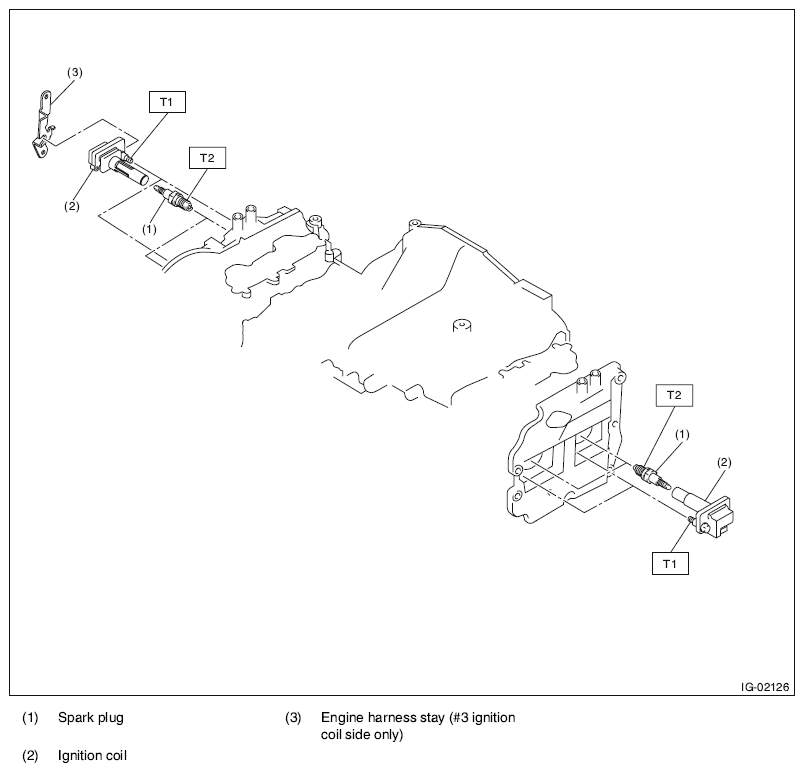

Fig 1: Identifying Spark Plug, Ignition Coil And Engine Harness Stay With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 16(1.6, 11.8)

T2: 21(2.1, 15.5)
