Transmission Case

WARNING: This page is about a different variant/trim than selected.

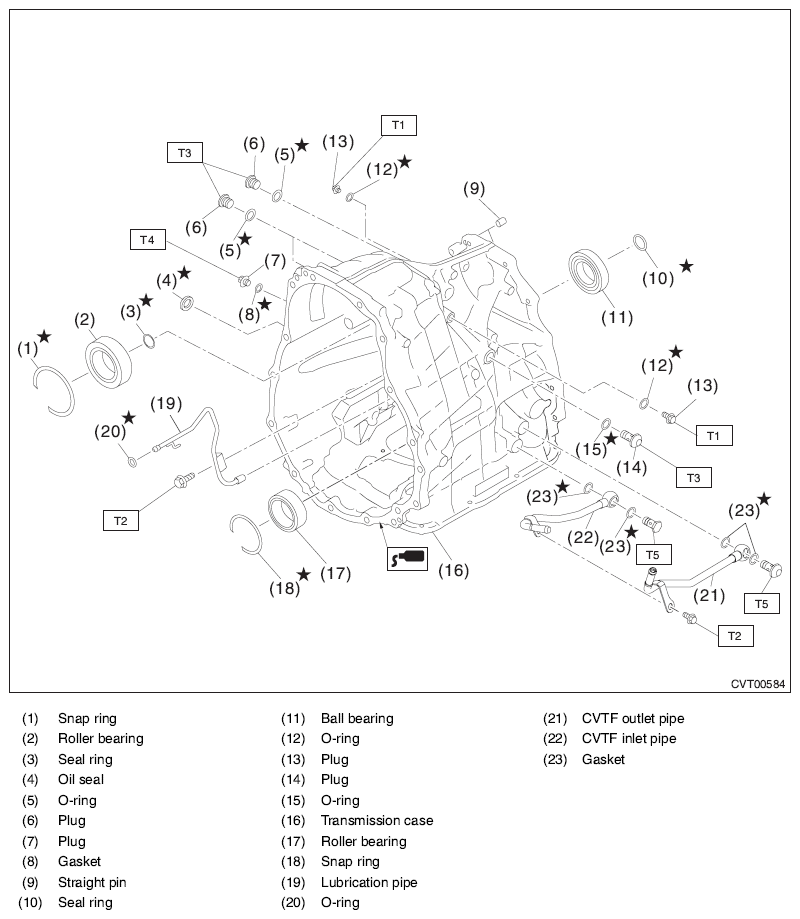

Fig 1: Exploded View Of Transmission Case

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m,

T1: 13(1.3, 9.6)

T2: 16(1.6, 11.8)

T3: 25(2.5, 18.4)

T4: 35(3.6, 25.8)

T5: 40(4.1, 29.5)
