Transmission Control Device

WARNING: This page is about a different variant/trim than selected.

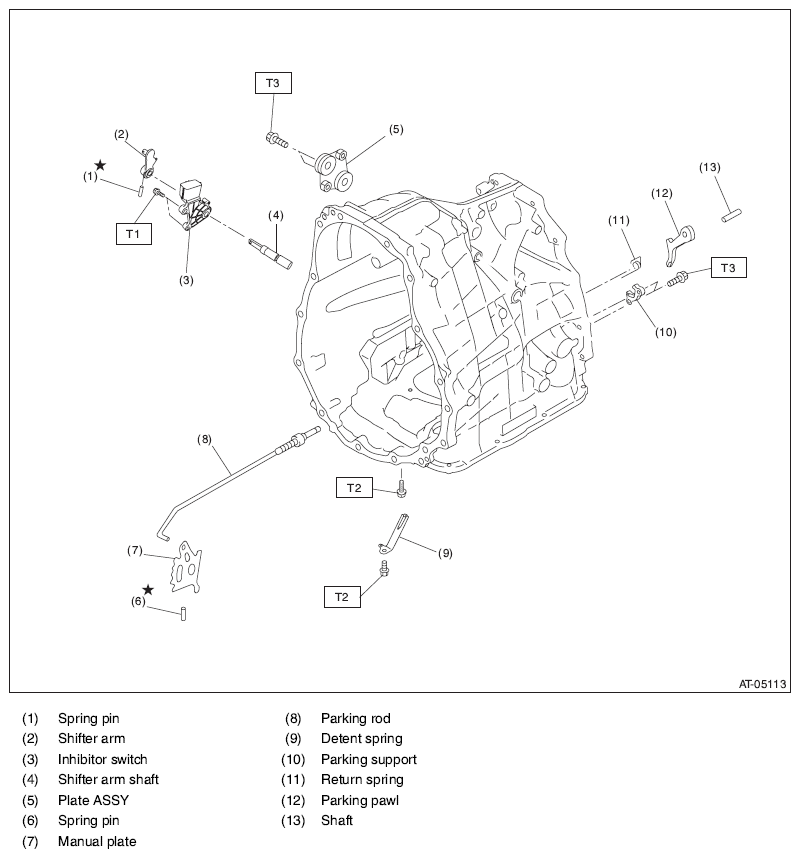

Fig 1: Identifying Transmission Control Device Related Components With Torque Specification

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb) T1: 5 (0.5, 3.7)

T2: 7 (0.7, 5.2)

T3: 25(2.5, 18.4)_
