Circuit figure

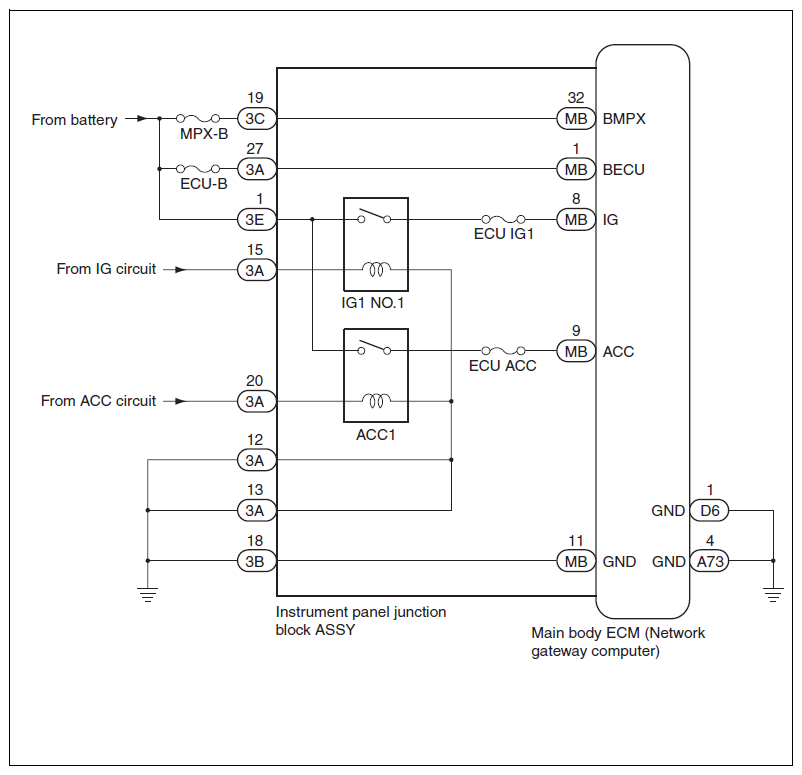

Fig 1: Instrument Panel Junction Block ASSY - Circuit Diagram
G11261096Courtesy of SUBARU OF AMERICA, INC.
