Subaru
›
2017
›
BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System
›
(FA20/port fuel injection)
›
Exploded view
Exploded view

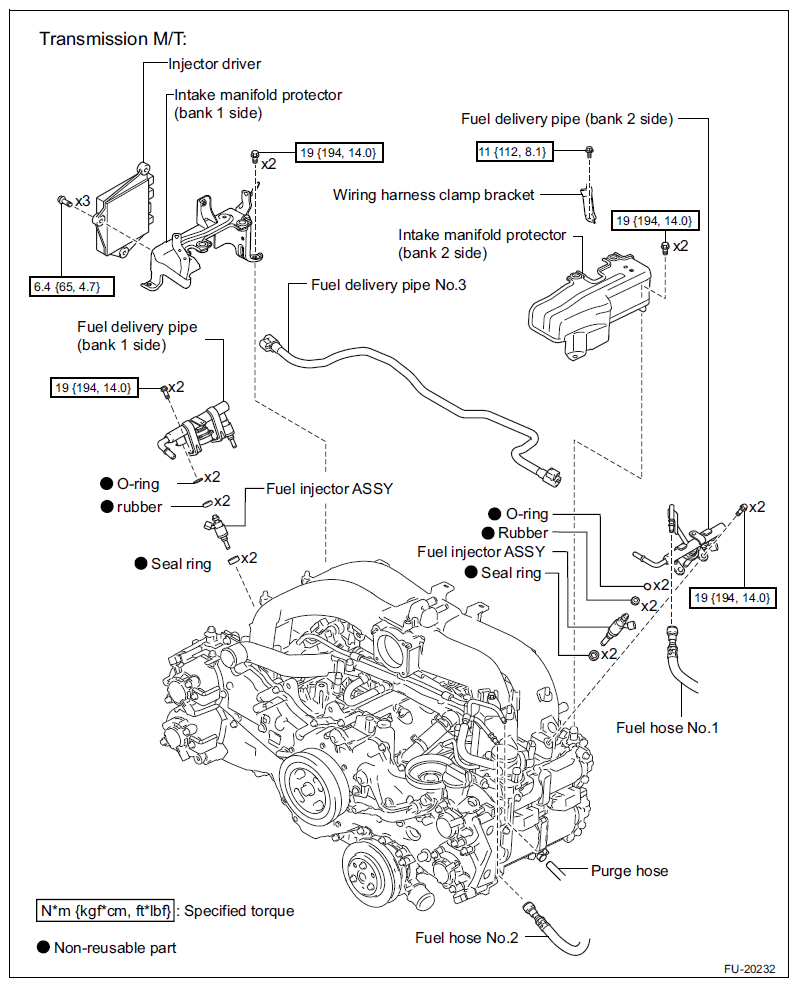

Fig 1: Exploded View Of Injector Assembly - FA20/Port Fuel Injection (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: Exploded View Of Injector Assembly - FA20/Port Fuel Injection (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
