Subaru
›
2017
›
BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
Engine Control Systems
›
Fuel Injection System
›
Parts location
›
Notes
Parts location: Notes

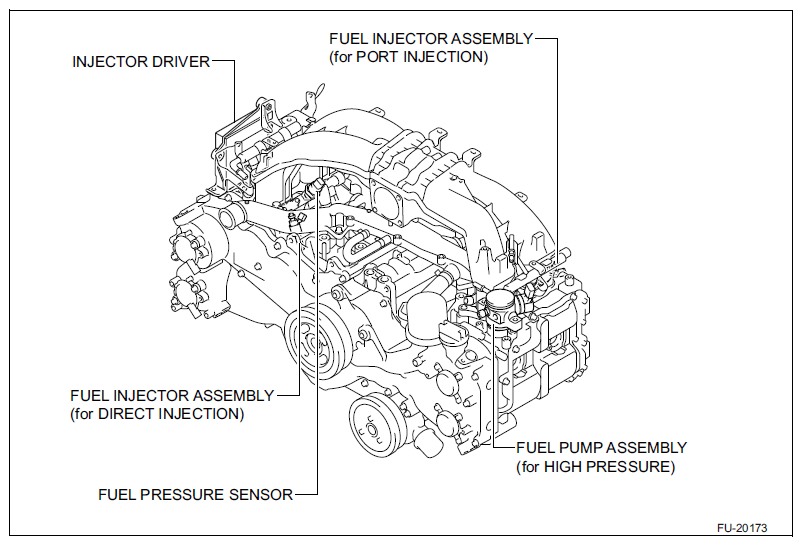

Fig 1: Identifying Fuel System Related Components (1 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

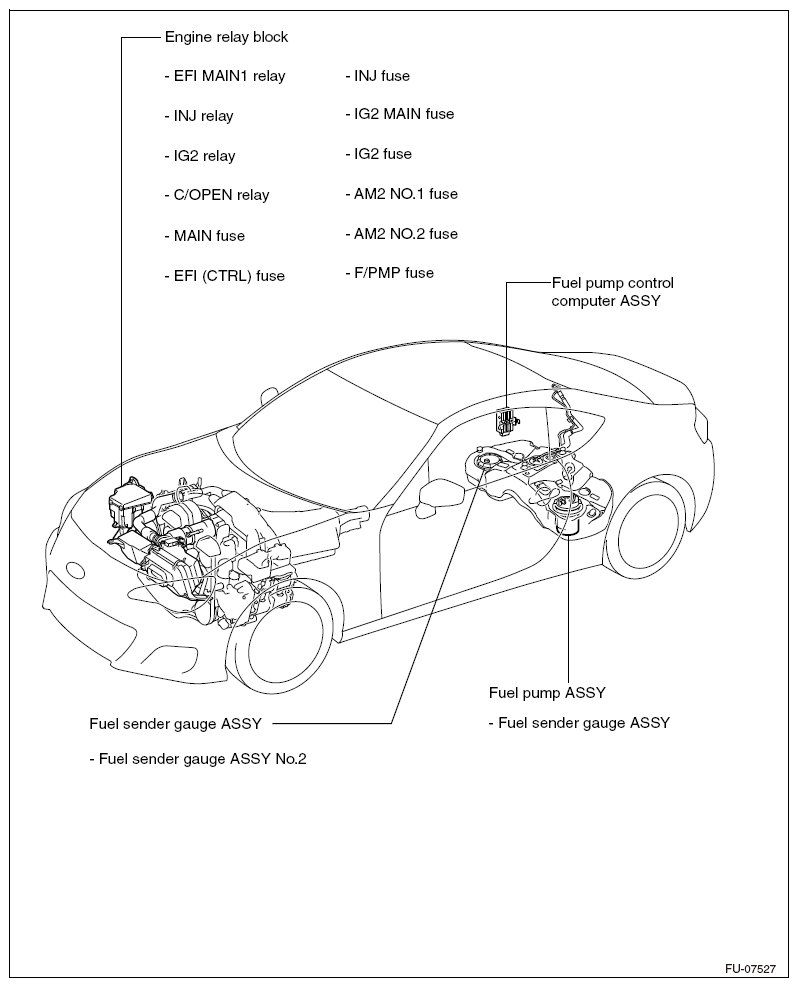

Fig 2: Identifying Fuel System Related Components (2 Of 3)
Courtesy of SUBARU OF AMERICA, INC.

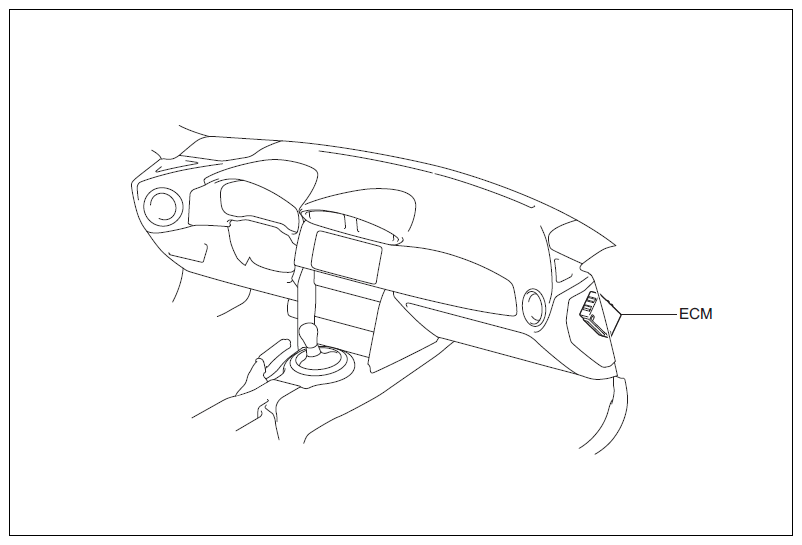

Fig 3: Identifying Fuel System Related Components (3 Of 3)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
