BRZ Limited, Automatic Trans
›
Repair and Diagnosis
›
Engine Performance
›
System
›
Engine Control System (Diagnostics - Introduction)
›
EFI system (FA20)
›
Parts location
Parts location

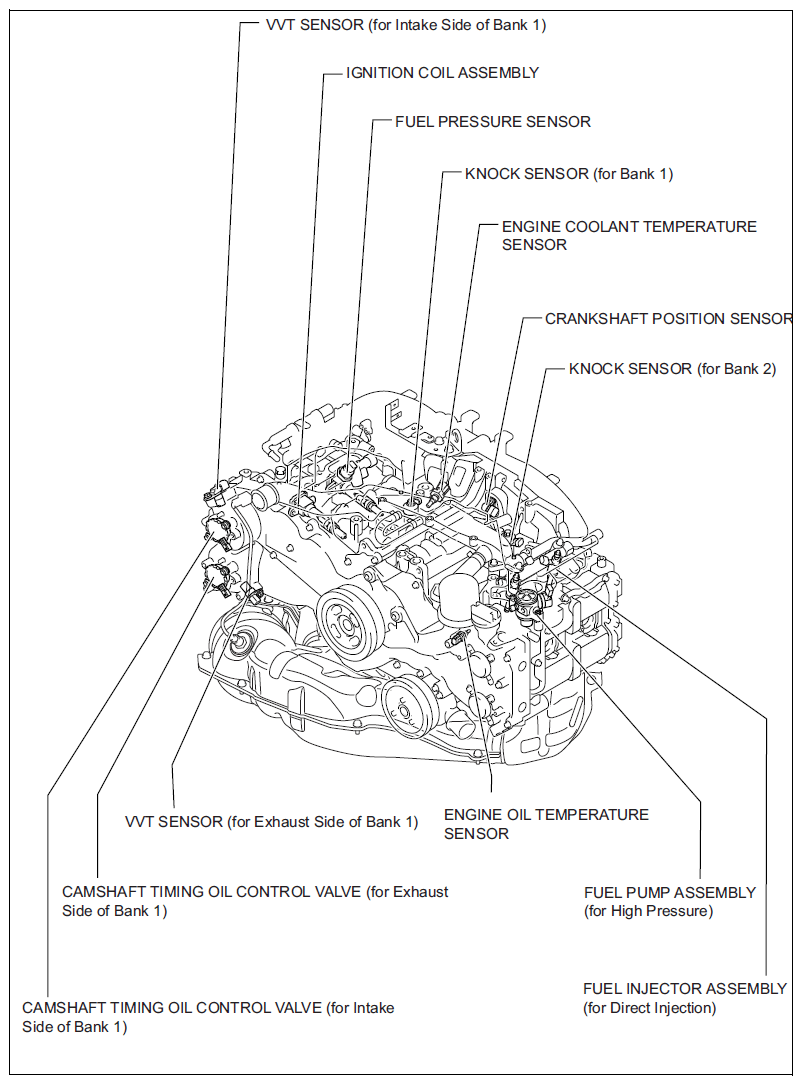

Fig 1: EFI System (FA20) Components Location (1 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 2: EFI System (FA20) Components Location (2 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 3: EFI System (FA20) Components Location (3 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Fig 4: EFI System (FA20) Components Location (4 Of 4)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
