Engine oil temperature sensor (FA20): Removal

  1. Disconnection of the battery ground terminal (Refer to Working precautions and notes )
  2. Removal of air cleaner case SUB-ASSY (Refer to V-belt (FA20) )
  3. Engine oil temperature sensor removal
    1. Disconnect the connector for the engine oil temperature sensor.
    2. Remove the engine oil temperature sensor.

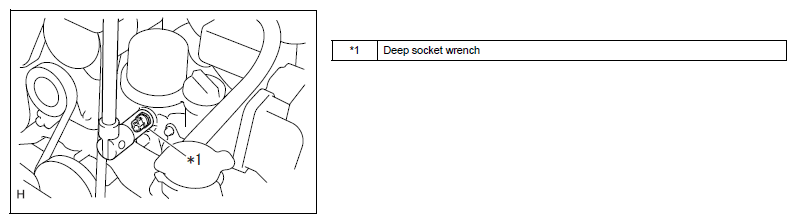

    Fig 1: Removing Engine Oil Temperature Sensor Using Deep Socket Wrench
    G11258404Courtesy of SUBARU OF AMERICA, INC.
