Rear seat outer belt ASSY
›
Exploded view
›
Notes
Exploded view: Notes

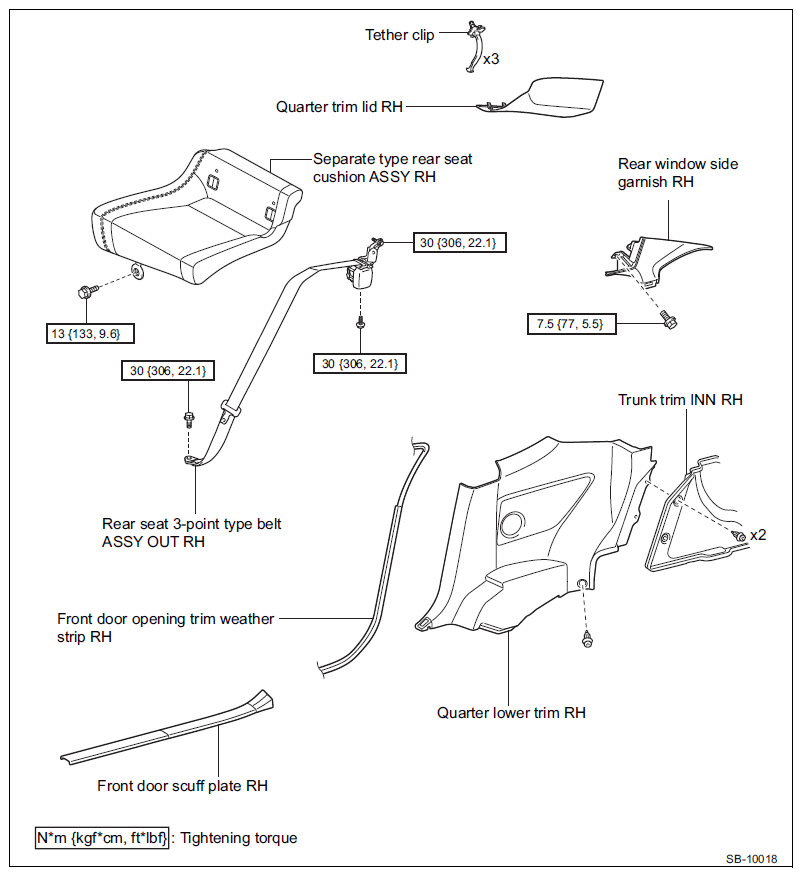

Fig 1: Exploded View Of Rear Seat Outer Belt Assy With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
