Circuit figure

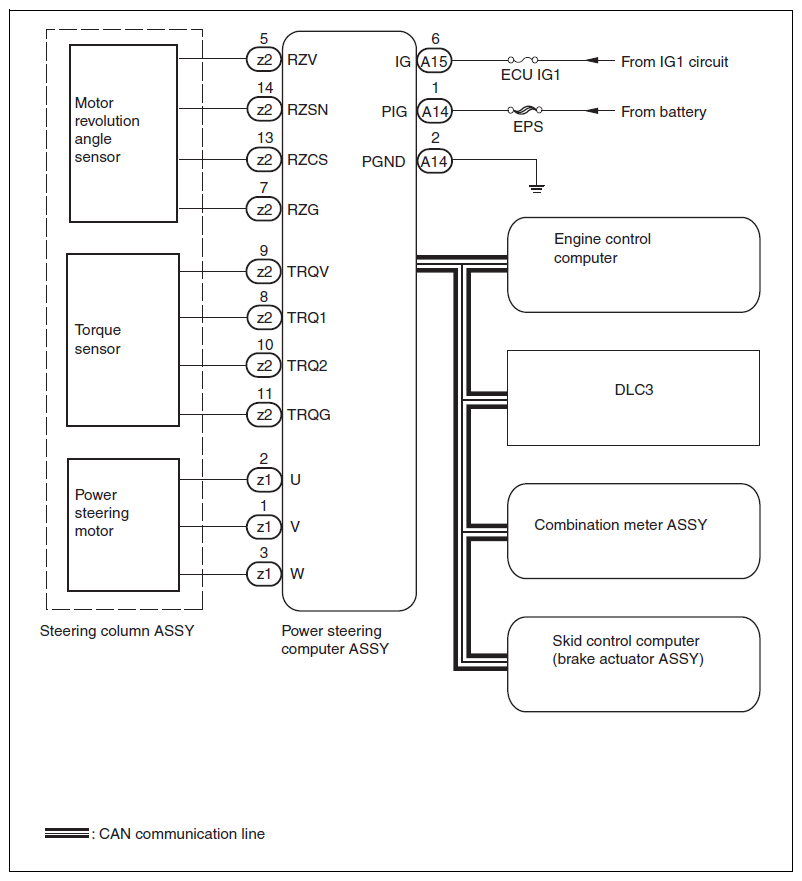

Fig 1: Power Steering System - Circuit Diagram
G11260892Courtesy of SUBARU OF AMERICA, INC.
