Steering lock system
›
Circuit figure
Circuit figure

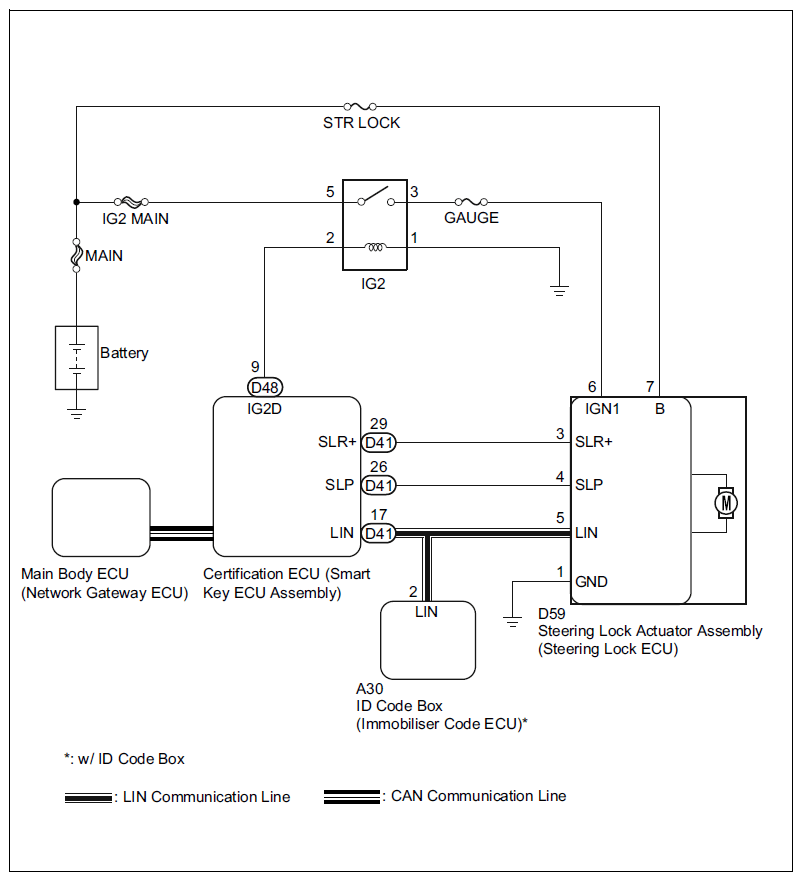

Fig 1: Steering Lock System - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
