Exploded view
Exploded view

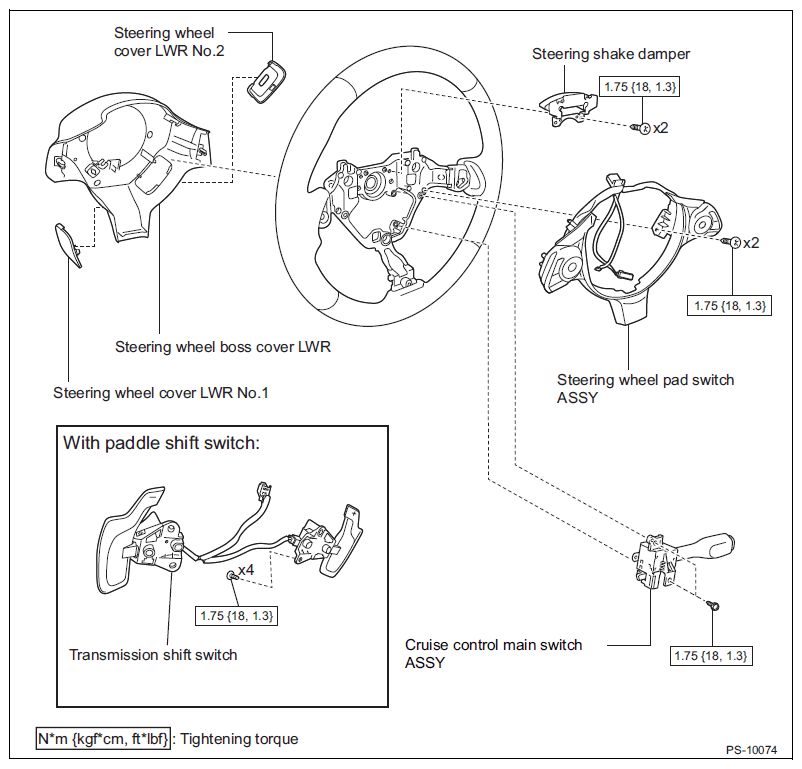

Fig 1: Steering Wheel With Torque Specification (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

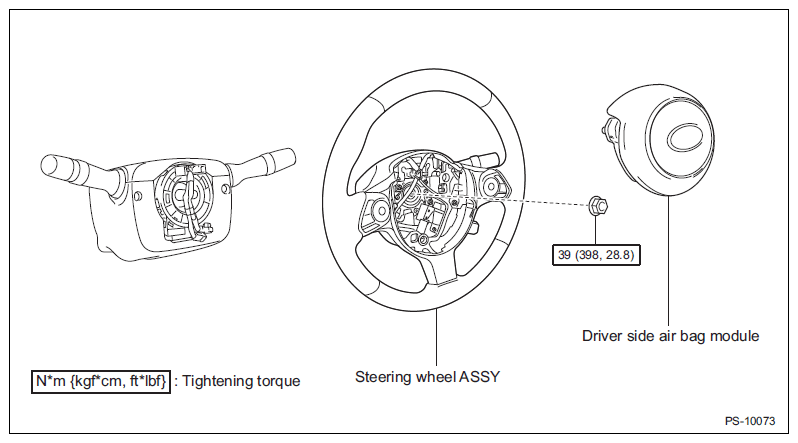

Fig 2: Steering Wheel With Torque Specification (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
