BRZ Limited, Standard Trans
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Power Window System
›
Power window system
›
Circuit figure
›
Overview
Circuit figure: Overview

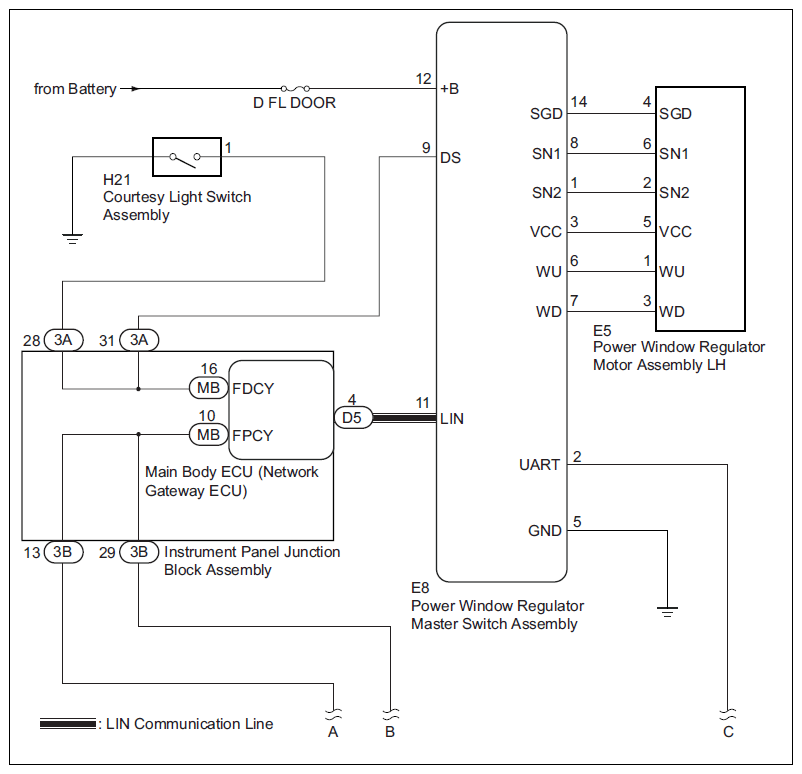

Fig 1: Power Window System - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

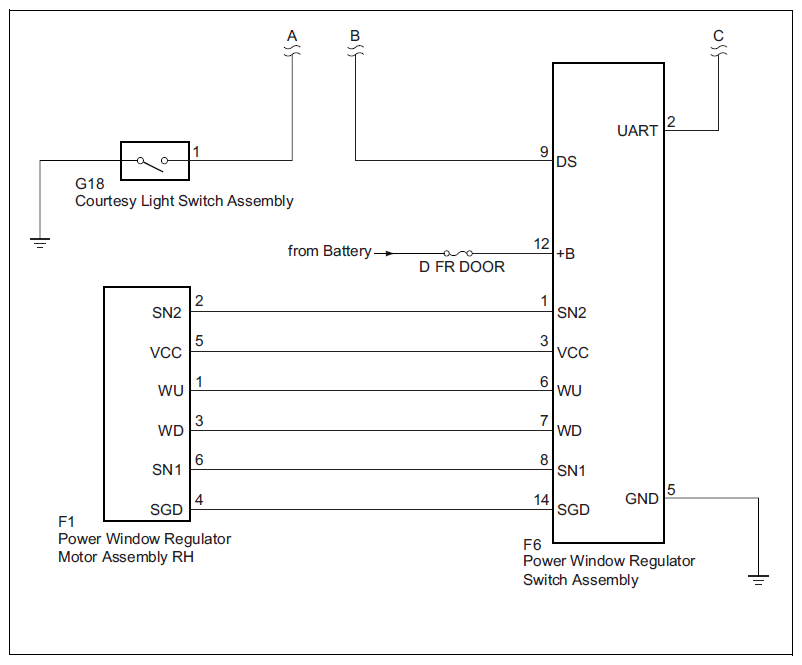

Fig 2: Power Window System - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
