Child seat fixing device (ISO-FIX)
›
Exploded view
Exploded view

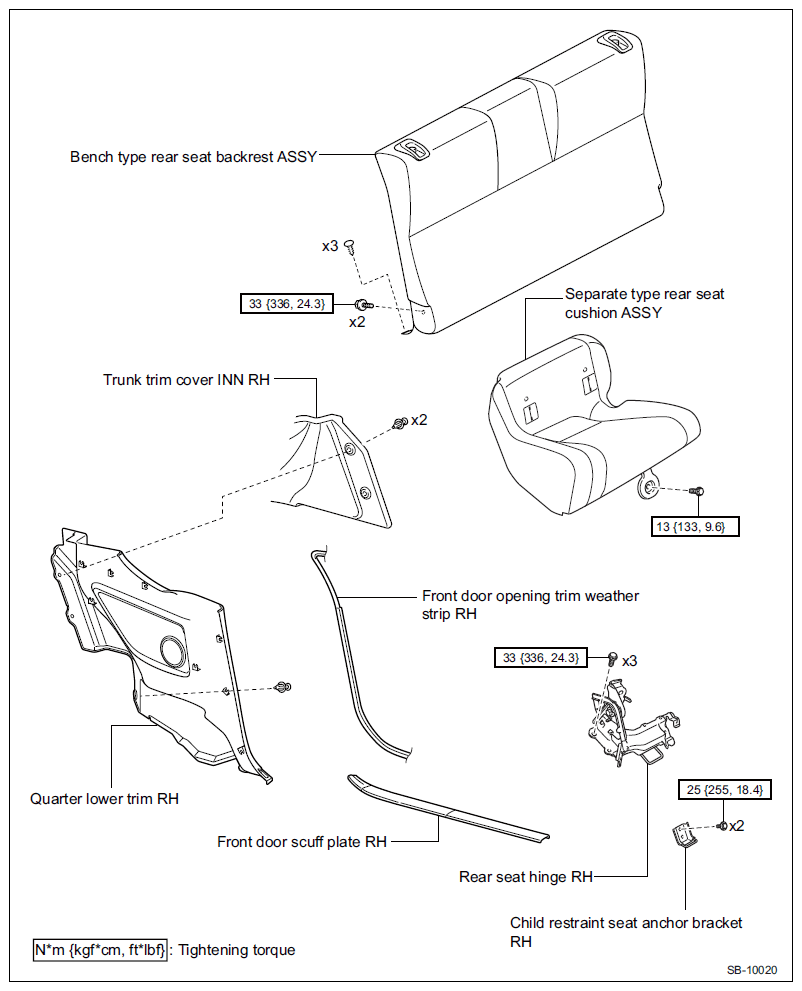

Fig 1: Exploded View Of Child Seat Fixing Device (ISO-FIX) With Torque Specification
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
