BRZ Series.Yellow
›
Repair and Diagnosis
›
Body & Frame
›
Windows
›
Glass & Power Window System
›
Window defogger system
›
Circuit figure
Circuit figure

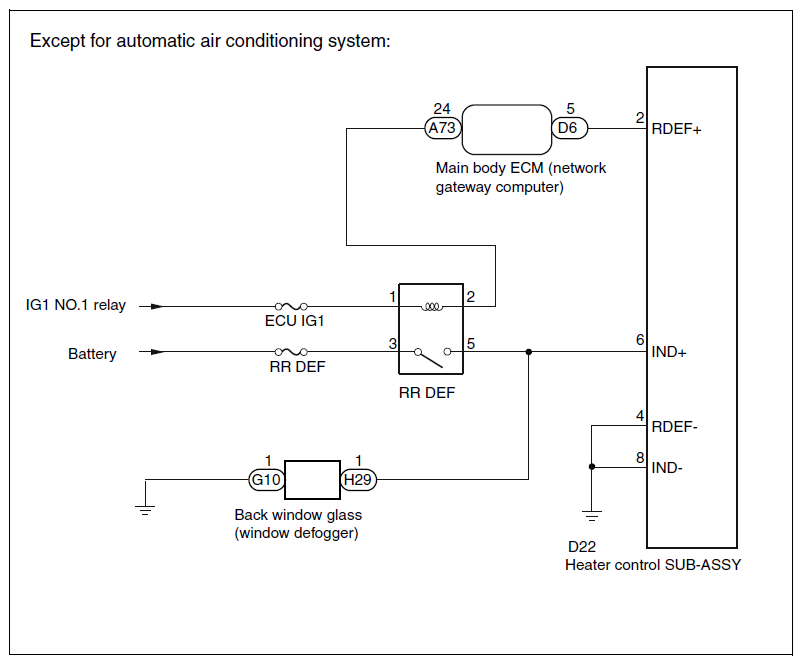

Fig 1: Window Defogger System - Circuit Diagram (1 Of 2)
Courtesy of SUBARU OF AMERICA, INC.

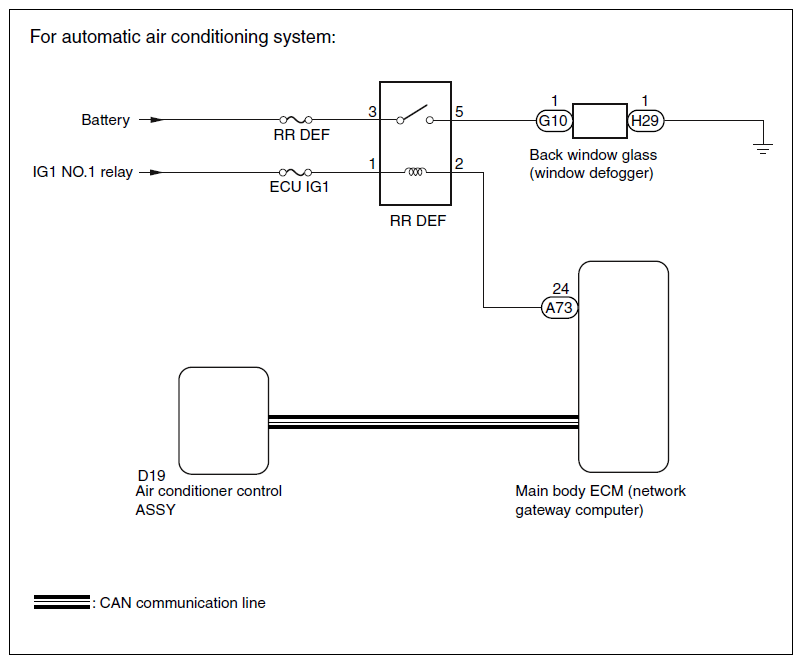

Fig 2: Window Defogger System - Circuit Diagram (2 Of 2)
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
