Exploded view

Fig 1: Roof Head Lining With Torque Specification (1 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

Fig 2: Roof Head Lining With Torque Specification (2 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

Fig 3: Roof Head Lining With Torque Specification (3 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

Fig 4: Roof Head Lining With Torque Specification (4 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

Fig 5: Roof Head Lining With Torque Specification (5 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

Fig 6: Roof Head Lining (6 Of 7)

Courtesy of SUBARU OF AMERICA, INC.

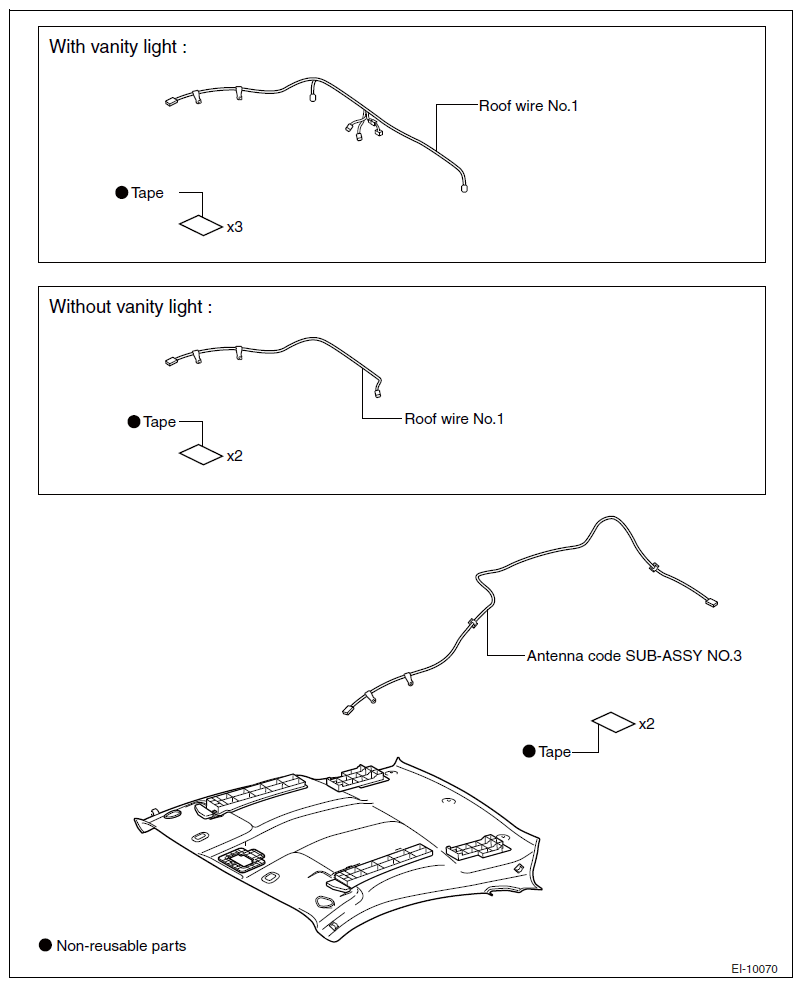

Fig 7: Roof Head Lining (7 Of 7)

Courtesy of SUBARU OF AMERICA, INC.
