Steering
›
Steering Column
›
Steering lock system
›
The steering lock cannot be released (cannot start the engine) (without ID code box)
›
Circuit figure
Circuit figure

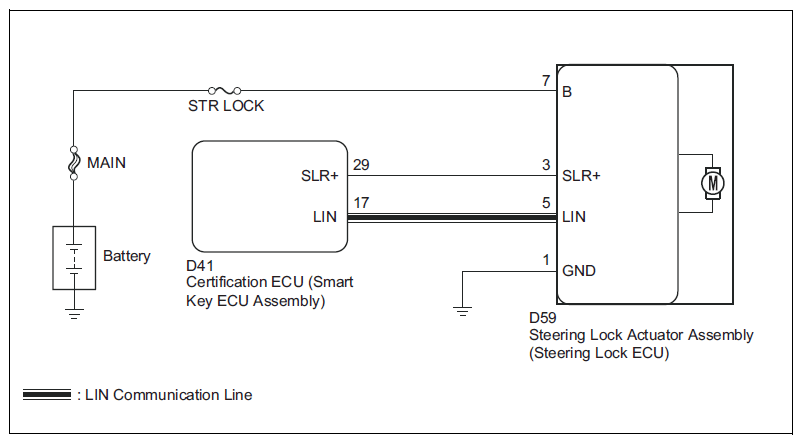

Fig 1: Certification ECU (Smart Key ECU Assembly) - Circuit Diagram
Courtesy of SUBARU OF AMERICA, INC.
Courtesy of SUBARU OF AMERICA, INC.
