Ignition Key Lock: Disassembly

1. Remove the immobilizer antenna assembly or the ignition switch illumination. Ref. to REMOVAL , Immobilizer Antenna.

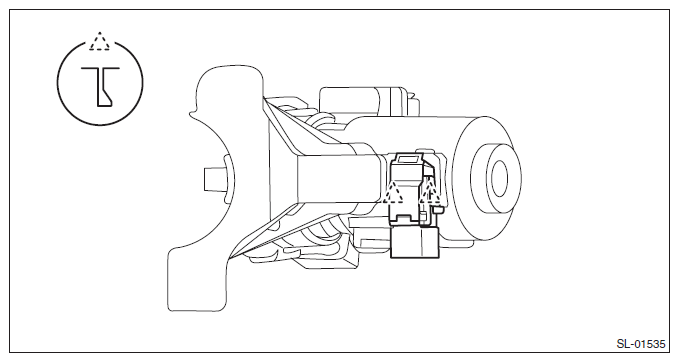

2. Release the claws, and pull the key warning switch downwards to remove.
   Fig 1: Key Warning Switch Claws

   Courtesy of SUBARU OF AMERICA, INC.

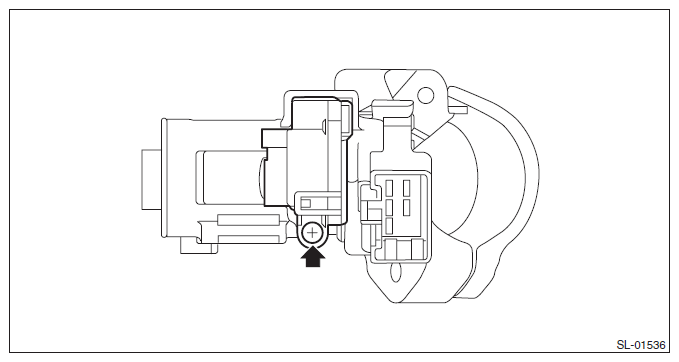

3. Remove the screws and remove the key lock solenoid.
   Fig 2: Locating Key Lock Solenoid Screws

   Courtesy of SUBARU OF AMERICA, INC.
4. Replace the key cylinder.
   1. Insert the key into the key cylinder, and turn the key to the ACC position.

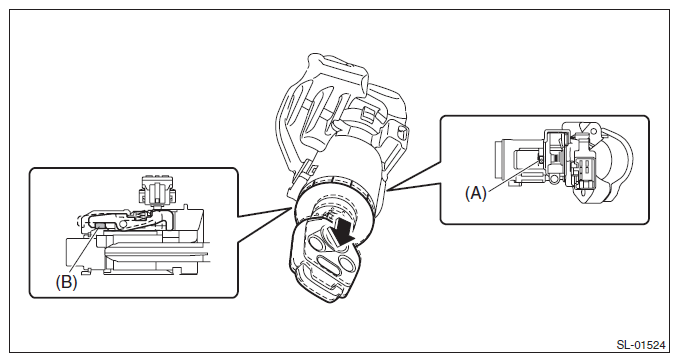

   2. Insert a flat tip screwdriver from the steering lock frame hole (A), and pull the key cylinder until the key cylinder claws touch the steering lock frame stopper (B).
      Fig 3: Inserting Flat Tip Screwdriver From Steering Lock Frame Hole

      Courtesy of SUBARU OF AMERICA, INC.

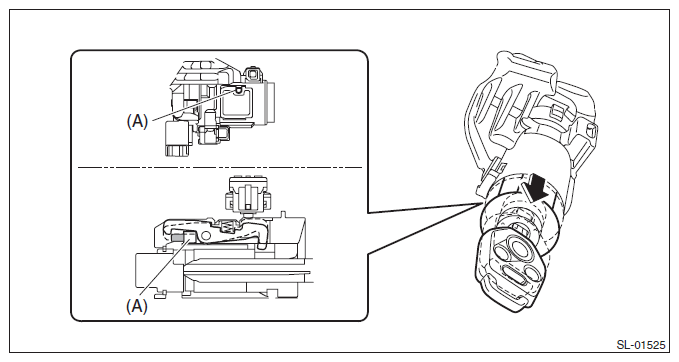

   3. Insert a flat tip screwdriver from the steering lock frame hole (A), and release the claws to pull out the key cylinder.
   Fig 4: Pulling Out Key Cylinder

   Courtesy of SUBARU OF AMERICA, INC.

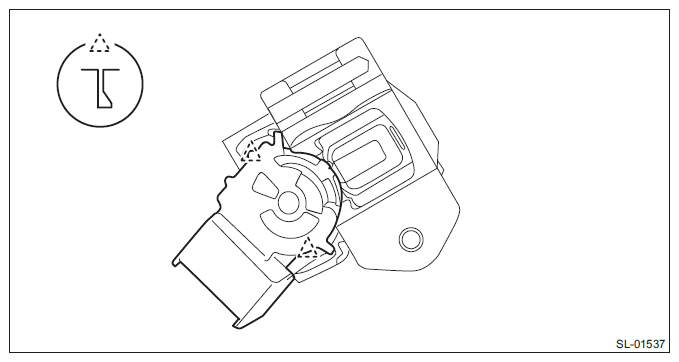

5. Release the claws and remove the ignition switch assembly.

Fig 5: Ignition Switch Assembly Claws

Courtesy of SUBARU OF AMERICA, INC.
