Push Button Ignition Switch: Inspection

Check the continuity between push button ignition switch terminals.

Preparation tool:

Circuit tester

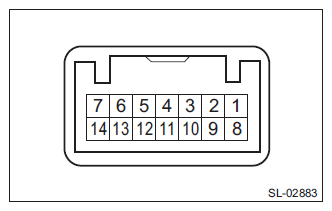

Fig 1: Push Button Ignition Switch Connector Terminals

Courtesy of SUBARU OF AMERICA, INC.

Terminal No.	Inspection conditions	Specification
4 (COM) - 5 (GND)	Always	Continuity exists
7 (SSW1) - 5 (GND)	Push button ignition switch released → pressed	Continuity exists
2 (SSW2) - 5 (GND)	Push button ignition switch released → pressed	Continuity exists

Check the push button ignition switch operation when battery voltage is applied between the terminals of the push button ignition switch.

Terminal No.	Inspection conditions	Specification
11 (SWIL) - 5 (GND)	Connect battery to the terminals	Goes off → Red switch illumination light
12 (INDS) - 5 (GND)		Turns off → Switch indicator lights in green
13 (INDW) - 5 (GND)		Turns off → Switch indicator lights in orange

Replace the push button ignition switch if the inspection result is not within the standard value.
