Front Seat

Manual seat LH

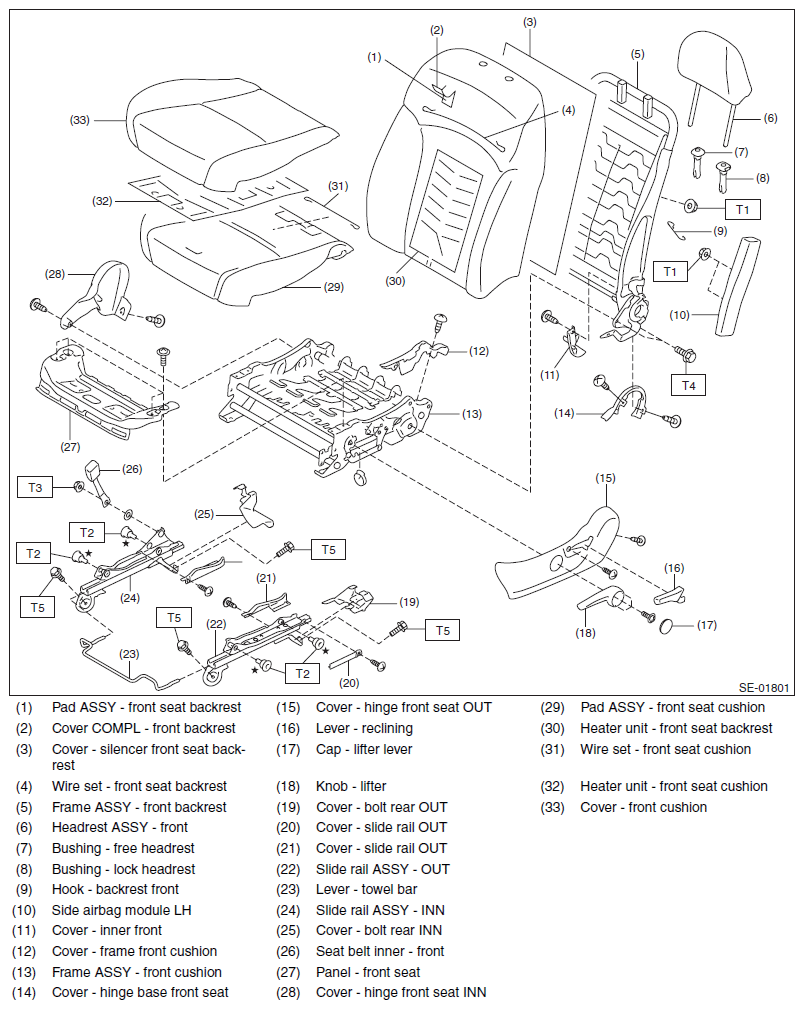

Fig 1: Exploded View Of Front Seat - Manual Seat LH

G11572021

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 15 (1.53, 11.1)

T3: 38 (3.87, 28.0)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)

Manual seat RH

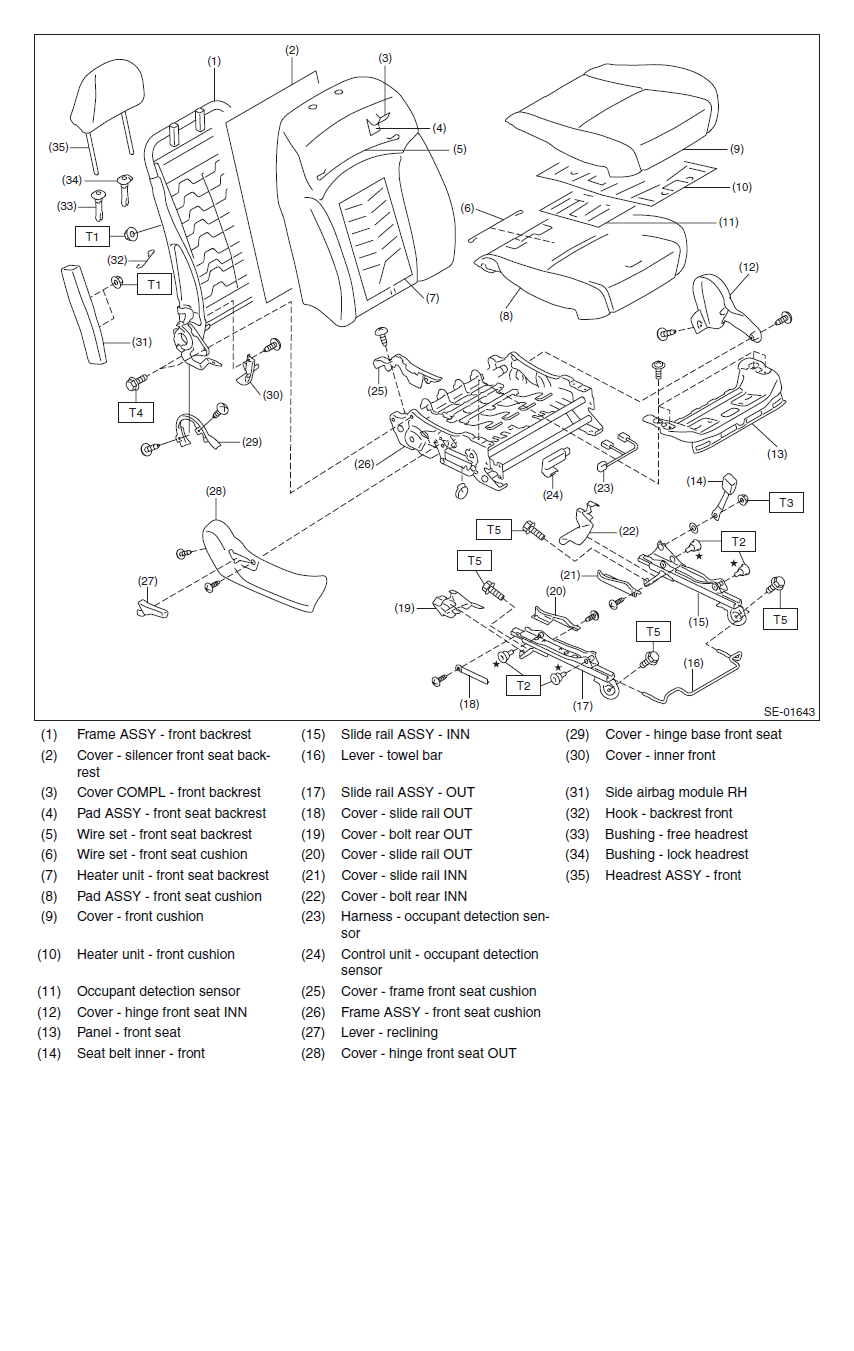

Fig 2: Exploded View Of Front Seat - Manual Seat RH

G11572022

Courtesy of SUBARU OF AMERICA, INC.

Tightening torque: N.m (kgf-m, ft-lb)

T1: 6 (0.61, 4.4)

T2: 15 (1.53, 11.1)

T3: 38 (3.87, 28.0)

T4: 52 (5.3, 38.4)

T5: 53 (5.4, 39.1)
